AOS chapter18 Loglinear Models

MLE estimate

The MLE estimate for the full multinomial model is relatively simple: consider the adjusted counts \(\tilde{C}_{\xi}\) to be the number of times an observation \(\xi\) appears, or 1 if that number of observations is 0. There are \(2^k = 128\) possible observations, so we get \(2^k\) adjusted counts \(\tilde{C}_1, \dots, \tilde{C}_{2^k}\). The MLE estimate is then computed as \(\hat{p} = (\hat{p}_1, \dots, \hat{p}_{2^k})\), with \(\hat{p}_i = \frac{\tilde{C}_i}{\sum_\xi \tilde{C}_\xi}\).

The function density estimate corresponding to the MLE estimate is a simple lookup table \(\hat{f}(\xi) = \hat{p}_\xi\), as we already have a probability estimate associated with every single possible event. The function density estimate can then be used to compute the loss function \(D(f, \hat{f})\), which is the KL divergence computed over the universe. Repeating this process gives us the risk estimate.

import numpy as np
from itertools import chain, combinations
from tqdm import notebook


# Recipe from itertools documentation, https://docs.python.org/2.7/library/itertools.html#recipes
def powerset(iterable):
    "powerset([1,2,3]) --> () (1,) (2,) (3,) (1,2) (1,3) (2,3) (1,2,3)"
    s = list(iterable)
    return chain.from_iterable(combinations(s, r) for r in range(len(s)+1))


def generate_samples(n, k):
    """
    Generates n samples of size k according to the synthetic distribution

    Args:
       n:  number of samples
       k:  sample size

    Returns:
       X:  2D array of shape (n, k), representing n samples of size k
    """

    # Generate a random unifom value between 0 and 1 for each variable in each sample
    random_seeds = np.random.uniform(low=0, high=1, size=(k, n))

    # Create a variable to store the generated samples
    output = np.empty_like(random_seeds).astype(int)

    # Generate x_1's as Bernoulli(1/2)
    output[0] = random_seeds[0] > 0.5
    for j in range(1, k):
        # Generate x_j's recursively
        output[j] = random_seeds[j] > (output[j - 1] == 0) * (1/4) + (output[j - 1] == 1) * (3/4)

    return output.T


def generate_universe(k):
    """
    Generates 2**k samples of size k iterating through the valid universe

    Args:
       k: sample size

    Returns:
       X_universe:  2D array of shape (2**k, k), representing the universe of all samples of size k
    """
    X_universe = np.zeros(shape=(2**k, k), dtype=int)
    for i, line in enumerate(powerset(range(k))):
        X_universe[i, line] = 1

    return X_universe


def row_to_binary(x):
    """
    Translates a single row into a binary low-endian representation

    Args:
       x:  1D array of 0s and 1s

    Returns:
       sum(x[i] * (2**i) for index i)
    """

    # Translate a row of 0s and 1s into a binary representation (low-endian)
    return sum([x[i] * (2**i) for i in range(len(x))])


def samples_to_count(X):
    """
    Counts the number of occurrences of each sample in the dataset

    Args:
       X:   2D array  n samples of size k

    Returns:
       count:  1D array of size 2**k, where count[i] is the number of
               occurrences of i as a row in binary (low-endian) in X,
               or 1 if the count would be 0.
    """

    binary_samples = np.apply_along_axis(row_to_binary, 1, X)
    k = X.shape[1]
    count = np.zeros(2**k)
    for sample in binary_samples:
        count[sample] += 1

    # Replace all zeroes with ones
    return np.where(count == 0, 1, count)


def true_density(x):
    """
    True density function for the synthetic distribution.

    Args:
       x:  1D array  sample

    Returns:
       value of PDF = (1/2) * (3/4)**(sum(x)) * (1/4)**(len(x) - sum(x))
    """

    s = sum(x)
    k = len(x)
    return (1/2) * ((3/4)**s) * ((1/4)**(k - s))


def KL_divergence(f, g, X):
    """
    Returns the KL divergence between f and g calculated on universe X

    Args:
       f:  1D array => double  probability density function
       g:  1D array => double  probability density function
       X:  2D array (n, k) of n samples of size k

    Returns:  D(f, g) = sum over samples of f(x) * log(f(x) / g(x))
    """

    def term(x):
        """
        Return f(x) * log(f(x) / g(x))

        Args:
           x:  1D array sample of values
        """
        fx = f(x)
        gx = g(x)
        return fx * np.log(fx / gx)

    return sum(np.apply_along_axis(term, 1, X))

# We can now calculate the expected value of the loss function by simulation

def p_hat_mle(X):
    """ MLE estimate for the multinomial (replacing zeros with ones) """
    count = samples_to_count(X)
    return count / sum(count)


def f_hat_mle(p_hat_mle):
    """ Density function for the estimated multinomial """
    return lambda x : p_hat_mle[row_to_binary(x)]

# Wrapper for parallel processing on progress bars
# Source: https://stackoverflow.com/a/58936697

import contextlib
import joblib
from joblib import Parallel, delayed

@contextlib.contextmanager
def tqdm_joblib(tqdm_object):
    """Context manager to patch joblib to report into tqdm progress bar given as argument"""
    class TqdmBatchCompletionCallback:
        def __init__(self, time, index, parallel):
            self.index = index
            self.parallel = parallel

        def __call__(self, index):
            tqdm_object.update()
            if self.parallel._original_iterator is not None:
                self.parallel.dispatch_next()

    old_batch_callback = joblib.parallel.BatchCompletionCallBack
    joblib.parallel.BatchCompletionCallBack = TqdmBatchCompletionCallback
    try:
        yield tqdm_object
    finally:
        joblib.parallel.BatchCompletionCallBack = old_batch_callback
        tqdm_object.close()

# Bootstrap MLE
import multiprocessing

B = 500
n = 1000
k = 7

X_universe = generate_universe(k=k)

n_jobs = max(multiprocessing.cpu_count() - 1, 1)

def bootstrap_step_mle(i):
    XX = generate_samples(n=n, k=k)
    p_hat = p_hat_mle(XX)
    f_hat = f_hat_mle(p_hat)
    return KL_divergence(true_density, f_hat, X_universe)

with tqdm_joblib(notebook.tqdm(desc="MLE", total=B)) as progress_bar:
    risk_mle = np.array(Parallel(n_jobs=n_jobs)(delayed(bootstrap_step_mle)(i) for i in range(B)))

print('MLE mean: %.2f' % risk_mle.mean())

MLE:   0%|          | 0/500 [00:00<?, ?it/s]


MLE mean: 0.75

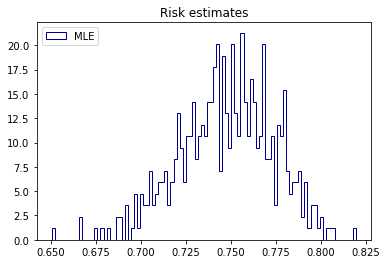

import matplotlib.pyplot as plt
%matplotlib inline

plt.hist(risk_mle, bins=100, label='MLE', density=True, histtype='step', color='darkblue')
plt.legend(loc='upper left')
plt.title('Risk estimates')
plt.show()

png

Parametrizing and fitting log-linear models

A log-linear model \(M_S\) has density of the form:

\[ \log f(x) = \sum_{A \subset S} \psi_A(x) \]

where \(\psi_A\) depends on \(x_i\) only if \(i \in A\). Since x = \((x_1, \dots, x_k)\) has its components with values \(x_i \in \{ 0, 1 \}\), we can express that as

\[ \psi_A(x) = \sum_{B \subset A} c_{B, A} g_A(x) = \sum_{B \subset A} c_{B, A} \left( \prod_{j \in B} x_j \right) \]

for some constants \(c_{B, A}\), and where \(g_A(x) = \prod_{j \in A} x_j\). We can then write the log-likelihood for a parameter \(\beta = \left\{ \beta_A | A \subset S \right\}\) as the sum of the log density evaluated at each observation:

\[ \ell(\beta) = \sum_{x \in \text{obs}} \log f(x; \beta) = \sum_{x \in \text{obs}} \sum_{A \subset S} \sum_{B \subset A} c_{B, A} g_A(x) = \sum_{x \in \text{obs}} \sum_{A \subset S} \beta_A g_A(x) = \sum_{A \subset S} \beta_A \sum_{x \in \text{obs}} g_A(x) \]

We will want to find the MLE \(\hat{\beta}\) subject to the constraint that \(f(x)\) is a probability density function which adds up to one, that is, \(\sum_{x \in \Omega} f(x) = 1\) over the random variable universe \(\Omega = \{ 0, 1 \}^k\).

We can now explicitly frame this as an optimization problem, with target being the maximization of the log likelihood, and a nonlinear equality constraint that the density function adds up to 1:

\[ \hat{\beta} = \text{argmax}_\beta \left\{ \sum_{A \subset S} \beta_A \sum_{x \in \text{obs}} g_A(x) \;\Bigg|\; \sum_{x \in \Omega} \exp \left( \sum_{A \subset S} \beta_A g_A(x) \right) = 1 \right\} \]

Matrix representation

We can use matrix multiplications to speed up the function and constraint evaluations during optimization. If \(X\) is a matrix of \(n\) samples by \(k\) dimensions, containing \(n\) observations, we define the matrix \(h_S(X)\), where

\[ (h_S(X))_{i, j} = \begin{cases} 1 & \text{if } X_{r}^j = 1 \text{ for all } r \in A \text{, where the } j \text{-th element of } X \text{ is } X^j = (X^j_1, \dots, X^j_k) \text{ and } A \text{ is the } i \text{-th subset of } S \\ 0 & \text{otherwise} \end{cases}\]

By definition, the log-likelihood then becomes the sum of the elements of the matrix product \(\beta \cdot h_S(X_\text{obs})\):

\[ \ell(\beta) = \sum_{A \in S} \sum_{x \in \text{obs}} \beta_A g_A(x) = \sum_i \left( \beta \cdot h_S(X_\text{obs}) \right)_i \]

The constraint can also be computed using a matrix multiplication, first defining a matrix \(X_\Omega\) of shape \((2^k, k)\) that contains one row for each possible observation:

\[ (X_\Omega)_{i, j} = \begin{cases} 1 & \text{if the } j \text{-th digit in the binary representation of } i \text{ is } 1 \\ 0 & \text{otherwise} \end{cases}\]

Then the sum of the density functions is the sum of the element-wise exponentials resulting from a matrix product \(\beta \cdot h_S(X_\Omega)\):

\[ \sum_{x \in \Omega} f(x) = \sum_{x \in \Omega} \exp \left(\sum_{A \subset S} \beta_A g_A(x) \right) = \sum_{i} \exp \left( \beta \cdot h_S(X_\Omega) \right)_i\]

Now, after pre-computing \(h_S(X_\text{obs})\) and \(h_S(X_\Omega)\), an optimizer will only need to perform sums, matrix multiplications and exponentiations to compute the target function and constraint penalty at each step.

Finally, note that \(\sum_{x \in \Omega} = 1\) if and only if \(\log \sum_{x \in \Omega} f(x) = 0\), so we can use scipy’s logsumexp function to represent the total probability density function constraint.

Model selection and bootstraping

Model selection is to be performed using forward selection with AIC or BIC scores. This means that, for each observation set \(X\), given a scoring process to pick between models, we will:

1. Fit the uniform model \(M_\varnothing\);
2. Given the current best model \(M_{S_0}\), fit all models \(M_{S}\) where \(S = S_0 \cup \{ i \}\) for each \(i\) not in \(S_0\);
3. If a new model was found as an improvement, select it as the new best model and return to step 2. Otherwise, keep the current best model and stop.

AIC will be computed as the log likelihood of the candidate model at its MLE minus its number of parameters:

\[ \text{AIC}(M_S) = \hat{\ell}_S - |M_S| \]

BIC will be computed as the log likelihood of the candidate model at its MLE minus the BIC penalty on this formulation (half times number of parameters times log sample size):

\[ \text{BIC}(M_S) = \hat{\ell}_S - \frac{1}{2} |M_S| \log n \]

Once a model is selected, we can compute its loss \(D(f, \hat{f})\), the KL divergence over the universe of observations for the fitted density function.

Bootstraping means repeating this process multiple times, observing the loss at each point and reporting its average and distribution. Note that the model selection itself is a part of the bootstraping process – different model formulations could potentially be chosen for different observations, even though they come from the same synthetic data generation process.

from scipy.optimize import minimize
from scipy.special import logsumexp

def get_loglinear_mle(X, subsets):
    """
    Estimates a loglinear model for observations X given variables S via maximizing the likelihood estimator.

    Args:
       X:  2D array, shape (n, k), of samples and observations (0 or 1)
       S:  iterable of variables between 0 and k-1 inclusive

    Returns:
       beta_hat:  1D array of size 2**|S| with estimated parameters via MLE
       log_likelihood:  Value of the log-likelihood of the model estimated at the MLE
    """
    k = X.shape[1]

    n_subsets = len(subsets)

    # Speed up calculation of gA operations with vector operations
    def get_h(XX):
        """
        Calculate the matrix gA(XX) of shape (2**|S|, XX.shape[0]), where
        gA(XX){i, j} = 1 if all elements of the i-th subset A of S are in the j-th sample of XX
                       0 otherwise
        """
        h = np.zeros(shape=(len(subsets), XX.shape[0]), dtype=int)
        for i, A in enumerate(subsets):
            h[i] = XX[:, A].all(axis = 1)

        return h

    h_obs = get_h(X)
    h_universe = get_h(generate_universe(k))

    def neg_log_likelihood(beta):
        return -np.sum(beta @ h_obs)

    def log_density_sum(beta):
        # Use scipy's logsumexp to avoid overflows
        # exp(sum(beta @ h_universe)) - 1 == 0 iff logsumexp(beta @ h_universe) == 0
        return logsumexp(beta @ h_universe)

    # Constraint: PDF adds up to 1
    pdf_constraint = {'type': 'eq', 'fun': log_density_sum}

    # Get initial guess: all values zero other than first
    beta0 = np.zeros(len(subsets))
    beta0[0] = -k * np.log(2)

    res = minimize(neg_log_likelihood, beta0, constraints=[pdf_constraint])
    beta_hat = res.x
    log_likelihood = -res.fun

    return beta_hat, log_likelihood


def f_loglinear(subsets, beta):
    """
    Computes the density function for a given set of variables S and corresponding parameters beta.

    f(x) = exp ( \sum_{A in S} \beta(A) * g_A(x) )
    """
    def f(x):
        return np.exp(np.sum([x[A].all() * beta[i] for i, A in enumerate(subsets)]))

    return f


def get_AIC(X, subsets):
    """
    Calculates AIC using the loglinear model log likelihood function.

    Args:
       X:        2D array (n, k), observed data for log-likelihood function
       subsets:  iterable, list of subsets for log-likelihood function

    Returns:
       AIC score for the given submodel:  ll - |subsets|
    """
    _, log_likelihood = get_loglinear_mle(X, subsets)
    penalty = len(subsets)

    return log_likelihood - penalty


def get_BIC(X, subsets):
    """
    Calculates BIC using the loglinear model log likelihood function.

    Args:
       X:        2D array (n, k), observed data for log-likelihood function
       subsets:  iterable, list of subsets for log-likelihood function

    Returns:
       BIC score for the given submodel:  ll - (|subsets| log n) / 2
    """
    _, log_likelihood = get_loglinear_mle(X, subsets)
    n = X.shape[0]
    penalty = len(subsets) * np.log(n) / 2

    return log_likelihood - penalty

def forward_selection(score_func, S):
    """
    Uses forward selection to select a subset A of S, in a search to maximize score_func(A).

    Args:
       score_func:  (A) => score, a function to score subsets
       S:           iterable to select a subset from

    Returns:
       A:           a subset of S resulting from forward selection

    """
    all_subsets = [list(s) for s in powerset(S)]
    current_subset = [[]]
    current_score = score_func(current_subset)

    while True:
        best_subset, best_score = current_subset, current_score
        improved = False
        for s in all_subsets:
            if s not in current_subset:
                candidate_subset = current_subset.copy()
                candidate_subset.append(s)
                candidate_subset.sort()
                candidate_score = score_func(candidate_subset)

                if candidate_score > best_score:
                    improved = True
                    best_subset, best_score = candidate_subset, candidate_score

        if not improved:
            break
        current_subset, current_score = best_subset, best_score

    return current_subset

# AIC bootstrapping

B = 10

n = 1000
k = 7

S_full = [i for i in range(k)]
X_universe = generate_universe(k=k)

n_jobs = max(multiprocessing.cpu_count() - 1, 1)

def bootstrap_step_aic(i):
    XX = generate_samples(n=n, k=k)
    score_func = lambda S: get_AIC(XX, S)
    best_subset = forward_selection(score_func, S_full)
    beta_hat, _ = get_loglinear_mle(XX, best_subset)
    f_hat = f_loglinear(best_subset, beta_hat)
    return KL_divergence(true_density, f_hat, X_universe)

with tqdm_joblib(notebook.tqdm(desc="AIC", total=B)) as progress_bar:
    risk_aic = np.array(Parallel(n_jobs=n_jobs)(delayed(bootstrap_step_aic)(i) for i in range(B)))

print('AIC mean: %.2f' % risk_aic.mean())

AIC:   0%|          | 0/10 [00:00<?, ?it/s]


AIC mean: 2.67

# BIC bootstrapping

B = 10

n = 1000
k = 7

S_full = [i for i in range(k)]
X_universe = generate_universe(k=k)

n_jobs = max(multiprocessing.cpu_count() - 1, 1)

def bootstrap_step_bic(i):
    XX = generate_samples(n=n, k=k)
    score_func = lambda S: get_BIC(XX, S)
    best_subset = forward_selection(score_func, S_full)
    beta_hat, _ = get_loglinear_mle(XX, best_subset)
    f_hat = f_loglinear(best_subset, beta_hat)
    return KL_divergence(true_density, f_hat, X_universe)

with tqdm_joblib(notebook.tqdm(desc="BIC", total=B)) as progress_bar:
    risk_bic = np.array(Parallel(n_jobs=n_jobs)(delayed(bootstrap_step_bic)(i) for i in range(B)))

print('BIC mean: %.2f' % risk_bic.mean())

BIC:   0%|          | 0/10 [00:00<?, ?it/s]


BIC mean: 1.05

# Remove samples with unsuccessful optimization
risk_aic = risk_aic[np.isfinite(risk_aic)]

print('MLE mean: %.2f' % risk_mle.mean())
print('AIC mean: %.2f' % risk_aic.mean())
print('BIC mean: %.2f' % risk_bic.mean())

MLE mean: 0.75
AIC mean: 2.67
BIC mean: 1.05

In this scenario, the best risk is obtained by the MLE, followed by the BIC and the AIC.

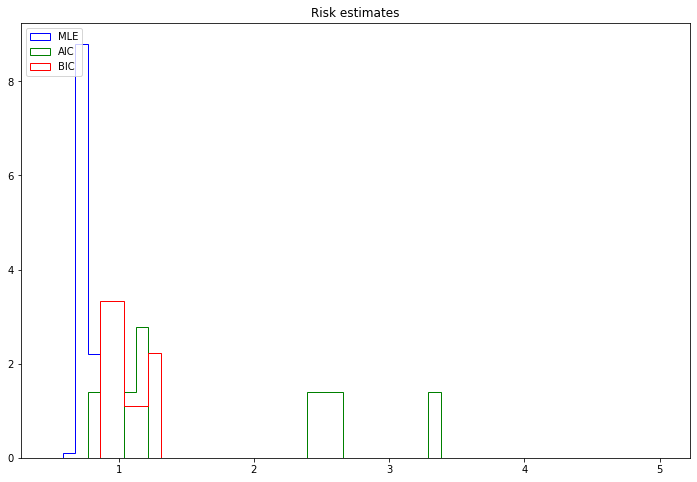

import matplotlib.pyplot as plt
%matplotlib inline

r = (0.5, 5.0)
plt.figure(figsize=(12, 8))
plt.hist(risk_mle, bins=50, range=r, label='MLE', density=True, histtype='step', color='blue')
plt.hist(risk_aic, bins=50, range=r, label='AIC', density=True, histtype='step', color='green')
plt.hist(risk_bic, bins=50, range=r, label='BIC', density=True, histtype='step', color='red')
plt.legend(loc='upper left')
plt.title('Risk estimates')
plt.show()

png

Exercise 18.8.3. Prove Lemma 18.5.

A partition \((X_a, X_b, X_c)\) satisfies \(X_b \text{ ⫫ } X_c \; | \; X_a\) if and only if \(f(x_a, x_b, x_c) = g(x_a, x_b) h(x_a, x_c)\) for some functions \(g\) and \(h\).

Solution. We have \(X_b \text{ ⫫ } X_c \; | \; X_a\) if and only if \(\mathbb{P}(X_b = b, X_c = c | X_a = a) = \mathbb{P}(X_b = b | X_a = a) \mathbb{P}(X_c = c | X_a = a)\) for every \(a\).

Let \(\mathbb{P}(X_b = b, X_c = c | X_a = a) = f_a(b, c)\), \(\mathbb{P}(X_b = b | X_a = a) = g_a(b)\) and \(\mathbb{P}(X_c = c | X_a = a) = h_a(c)\). Then the statement is equivalent to \(f_a(b, c) = g_a(b) h_a(c)\) for all \(a, b, c\). The result follows by defining \(f(a, b, c) = f_a(b, c)\), \(g_a(b) = g(a, b)\) and \(h_a(c) = h(a, c)\).

Exercise 18.8.4. Prove Lemma 18.9.

A graphical model is hierarchical but the reverse need not be true.

Solution.

A log-linear model \(\log f(x) = \sum_{A \subset S} \psi_A(x)\) is graphical if \(\psi_A(x) \neq 0\) except for any pair of coordinates not in the edge set for some graph \(\mathcal{G}\).

A log-linear model \(\log f(x) = \sum_{A \subset S} \psi_A(x)\) is hierarchical if \(\psi_A = 0\) and \(A \subset B\) implies \(\psi_B = 0\).

If, on a graphical model with associated graph \(\mathcal{G}\), \(\psi_A = 0\), then by definition there exists \(\{ i, j \} \subset A\) such that \((i, j)\) is not an edge of \(\mathcal{G}\). But then, for any \(B\) containing \(A\), we also have that \(\{ i, j \} \subset B\), and since the model is graphical we must have \(\psi_B = 0\). Therefore a graphical model is hierarchical.

We can prove that hierarchical models are not all graphical with a counterexample, namely the book’s Example 18.11. This is the hierarchical model with generator \(1.2 + 1.3 + 2.3\):

\[\log f(x) = \psi_\varnothing(x) + \psi_1(x) + \psi_2(x) + \psi_3(x) + \psi_{12}(x) + \psi_{13}(x) + \psi_{23}(x)\]

This model is hierarchical, but it is not graphical since \(\psi_{123} = 0\).

Exercise 18.8.5. Consider random variables \((X_1, X_2, X_3, X_4)\). Suppose the log-density is

\[\log f(x) = \psi_\varnothing(x) + \psi_{12}(x) + \psi_{13}(x) + \psi_{24}(x) + \psi_{34}(x) \]

(a) Draw the graph \(\mathcal{G}\) for these variables.

(b) Write down all the independence and conditional independence relations implied by the graph.

(c) Is this model graphical? Is it hierarchical?

Solution

(a)

from graphviz import Graph

g = Graph()

g.edge('X1', 'X2')
g.edge('X1', 'X3')
g.edge('X2', 'X4')
g.edge('X3', 'X4')

g

svg

(b)

• $X_1 X_4 | X_2, X_3 $
• $X_2 X_3 | X_1, X_4 $

(c) The model is not graphical, since \(\psi_1 = 0\) but the definition of a graphical model requires all \(\psi_A\) to be non-zero unless an edge from \(\mathcal{G}\) is contained in \(A\) – and \(A = \{ 1 \}\) contains no edges.

Since the model is not graphical, it is not hierarchical either.

Exercise 18.8.6. Suppose that parameters \(p(x_1, x_2, x_3)\) are proportional to the following values:

\[ \begin{array}{cccccc} \hline & x_2 & 0 & 0 & 1 & 1 \\ & x_3 & 0 & 1 & 0 & 1 \\ \hline x_1 & 0 & 2 & 8 & 4 & 16 \\ & 1 & 16 & 128 & 32 & 256 \\ \hline \end{array} \]

Find the \(\psi\)-terms for the log-linear expansion. Comment on the model.

Solution. Rewriting the given parameters table, where \(p'\) are the given values,

\[ \begin{array}{ccc | c | c} x_1 & x_2 & x_3 & p' & \log_2 p'\\ \hline 0 & 0 & 0 & 2 & 1\\ 0 & 0 & 1 & 8 & 3\\ 0 & 1 & 0 & 4 & 2\\ 0 & 1 & 1 & 16 & 4\\ 1 & 0 & 0 & 16 & 4\\ 1 & 0 & 1 & 128 & 7\\ 1 & 1 & 0 & 32 & 5\\ 1 & 1 & 1 & 256 & 8\\ \hline \end{array} \]

and by inspection we can verify that

\[ \log_2 p' = 1 + 3 x_1 + x_2 + 2 x_3 + x_1 x_3 \]

Now, since \(f(x_1, x_2, x_3) \propto p'(x_1, x_2, x_3)\), then the log density is the value above plus a constant:

\[ \log f(x) = c + \frac{3}{\log 2} x_1 + \frac{1}{\log 2} x_2 + \frac{2}{\log 2} x_3 + \frac{1}{\log 2} x_1 x_3 = \psi_\varnothing + \psi_1(x) + \psi_2(x) + \psi_3(x) + \psi_{13}(x)\]

where

\[ \psi_\varnothing(x) = c \quad \psi_1(x) = \frac{3}{\log 2} x_1 \quad \psi_2(x) = \frac{1}{\log 2} x_2 \quad \psi_3(x) = \frac{2}{\log 2} x_3 \quad \psi_{13}(x) = \frac{1}{\log 2} x_1 x_3 \]

All that remains is finding \(c = \psi_\varnothing(x)\) so that the probability density adds up to 1. But \(f(0, 0, 0) = \frac{p'(0, 0, 0)}{\sum_x p'(x)} = \frac{1}{231}\), so

\[ \psi_\varnothing(x) = - \log 231\]

This is a graphical model with generator \(1.3 + 2\); we have \(X_1 \text{ ⫫ } X_3 | X_2\) and the following graph:

from graphviz import Graph

g = Graph()

g.edge('X1', 'X2')
g.edge('X2', 'X3')

g

svg

Exercise 18.8.7. Let \(X_1, \dots, X_4\) be binary. Draw the independence graphs corresponding to the following log-linear models. Also, identify whether each is graphical and/or hierarchical (or neither).

(a) \(\log f = 7 + 11 x_1 + 2 x_2 + 1.5 x_3 + 17 x_4\)

(b) \(\log f = 7 + 11 x_1 + 2 x_3 + 1.5 x_3 + 17 x_4 + 12 x_2 x_3 + 78 x_2 x_4 + 3 x_3 x_4 + 32 x_2 x_3 x_4\)

(c) \(\log f = 7 + 11 x_1 + 2 x_3 + 1.5 x_3 + 17 x_4 + 12 x_2 x_3 + 3 x_3 x_4 + x_1 x_4 + 2 x_1 x_2\)

(d) \(\log f = 7 + 5055 x_1 x_2 x_3 x_4\)

Solution. Let’s assume these are valid density functions – that is, that a constant is added to each of these so that the densities add up to 1, or that the log is applied in an applicable base. In either scenario, we just need the zero or non-zero properties of each coefficient to determine the answers for this exercise.

(a) \(\log f = \psi_\varnothing + \psi_1 + \psi_2 + \psi_3 + \psi_4\)

This is a graphical model with mutual independence across all variables. It is graphical and hierarchical, corresponding to model generator \(1 + 2 + 3 + 4\). The graph is as follows:

from graphviz import Graph

g = Graph()

g.node('X1')
g.node('X2')
g.node('X3')
g.node('X4')

g

svg

(b) \(\log f = \psi_\varnothing + \psi_1 + \psi_2 + \psi_3 + \psi_4 + \psi_{23} + \psi_{24} + \psi_{34} + \psi_{234}\)

This is a graphical model with independence between 1 and all other variables. It is graphical and hierarchical, corresponding the model generator \(1 + 2.3.4\). The graph is as follows:

from graphviz import Graph

g = Graph()

g.node('X1')
g.edge('X2', 'X3')
g.edge('X3', 'X4')
g.edge('X4', 'X2')

g

svg

(c) \(\log f = \psi_\varnothing + \psi_1 + \psi_2 + \psi_3 + \psi_4 + \psi_{23} + \psi_{34} + \psi_{14} + \psi_{12}\)

This is a graphical and hierarchical model. It corresponds to model generator \(1.2 + 2.3 + 3.4 + 4.1\); the only conditional independences require the other two given variables. The graph is as follows:

from graphviz import Graph

g = Graph()

g.edge('X1', 'X2')
g.edge('X1', 'X4')
g.edge('X3', 'X4')
g.edge('X2', 'X3')

g

svg

(d) \(\log f = \psi_\varnothing + \psi_{1234}\)

This model has dependencies between all variables, but it is not graphical nor hierarchical; \(\psi_{12} = 0\) but \(\psi_{1234} \neq 0\). We can nonetheless draw a graph that would include this model without including all of its independence information by drawing a fully saturated graph:

from graphviz import Graph

g = Graph()

g.edge('X1', 'X2')
g.edge('X1', 'X3')
g.edge('X1', 'X4')
g.edge('X2', 'X3')
g.edge('X2', 'X4')
g.edge('X3', 'X4')

g

svg
