3.1 The sigmoid output and cross-entropy cost function

The quadratic cost function \[C=\frac{(y-a)^2}{2},\tag{3.1}\] where \(a\) is the neuron’s output when the training input \(x = 1\) is used, and \(y = 0\) is the corresponding desired output. To write this more explicitly in terms of the weight and bias, recall that \(a = \sigma(z)\), where \(z = wx + b\). Using the chain rule to differentiate with respect to the weight and bias we get \[\frac{\partial C}{\partial w}=(a-y)\sigma'(z)x=a\sigma'(z)x\tag{3.2}\] \[\frac{\partial C}{\partial b}=(a-y)\sigma'(z)=a\sigma'(z)\tag{3.3}\] Since \[\sigma'(z)=\left(\frac{1}{1+e^{-x}}\right)'=\sigma(z)(1-\sigma(z))\] when the neuron’s output is close to \(1\), the \(\sigma'(z)\) gets very small and the learning slowdown.

We define the cross-entropy cost function for this neuron by \[C=-\frac{1}{n}\sum_x[y\ln a+(1-y)\ln(1-a)],\tag{3.4}\] where \(n\) is the total number of items of training data, the sum is over all training inputs, \(x\), and \(y\) is the corresponding desired output. We substitute \(a=\sigma(z)\) into (3.4), and apply the chain rule twice, obtaining: \[\begin{align} \frac{\partial C}{\partial w_j}&=-\frac{1}{n}\sum_x\left(\frac{y}{\sigma(z)}-\frac{1-y}{1-\sigma(z)}\right)\frac{\partial \sigma}{\partial w_j}\\ &=-\frac{1}{n}\sum_x\left(\frac{y}{\sigma(z)}-\frac{1-y}{1-\sigma(z)}\right)\sigma'(z)x_j\\ &=\frac{1}{n}\sum_x\frac{\sigma(z)-y}{\sigma(z)(1-\sigma(z))}\sigma'(z)x_j\\ &=\frac{1}{n}\sum_x(\sigma(z)-y)x_j\tag{3.5} \end{align}\] It tells us that the rate at which the weight learns is controlled by \((\sigma(z)-y)\), i.e., by the error in the output. And \[\frac{\partial C}{\partial b}=\frac{1}{n}\sum_x(\sigma(z)-y).\tag{3.8}\] Again, this avoids the learning slowdown caused by the \(\sigma'(z)\) term in the analogous equation for the quadratic cost, Equation (3.3).

It’s easy to generalize the cross-entropy to many-neuron multi-layer networks. In particular, suppose \(y = y_1, y_2, \cdots\), are the desired values at the output neurons, i.e., the neurons in the final layer, while \(a_1^L, a_2^L, \cdots\) are the actual output values. Then we define the cross-entropy by \[\sum_j\left[y_j\ln a_j^L+(1-y_i)\ln(1-a_j^L)\right].\tag{3.9}\]

For the cross-entropy cost the output error \(\delta^L\) for a single training example \(x\) is given by \[\delta^L=a^L-y.\tag{3.12}\] The partial derivative with respect to the weights in the output layer is given by \[\frac{\partial C}{\partial w_{jk}^L}=\frac{1}{n}\sum_x(\sigma(z_j^L)-y_j)x_k^{L-1}=\frac{1}{n}\sum_x(a_j^L-y_j)a_k^{L-1}\tag{3.13}\]

The \(\sigma'(z_j^L)\) term has vanished, and so the cross-entropy avoids the problem of learning slowdown, not just when used with a single neuron, as we saw earlier, but also in many-layer multi-neuron networks. A simple variation on this analysis holds also for the biases. \[\frac{\partial C}{\partial b_j^L}=\frac{1}{n}\sum_x(a_j^L-y_j). \tag{3.16}\]

"""network2.py
~~~~~~~~~~~~~~

An improved version of network.py, implementing the stochastic
gradient descent learning algorithm for a feedforward neural network.
Improvements include the addition of the cross-entropy cost function,
regularization, and better initialization of network weights.  Note
that I have focused on making the code simple, easily readable, and
easily modifiable.  It is not optimized, and omits many desirable
features.

"""

#### Libraries
# Standard library
import json
import random
import sys

# Third-party libraries
import numpy as np


#### Define the quadratic and cross-entropy cost functions

class QuadraticCost(object):

    @staticmethod
    def fn(a, y):
        """Return the cost associated with an output ``a`` and desired output
        ``y``.

        """
        return 0.5*np.linalg.norm(a-y)**2

    @staticmethod
    def delta(z, a, y):
        """Return the error delta from the output layer."""
        return (a-y) * sigmoid_prime(z)


class CrossEntropyCost(object):

    @staticmethod
    def fn(a, y):
        """Return the cost associated with an output ``a`` and desired output
        ``y``.  Note that np.nan_to_num is used to ensure numerical
        stability.  In particular, if both ``a`` and ``y`` have a 1.0
        in the same slot, then the expression (1-y)*np.log(1-a)
        returns nan.  The np.nan_to_num ensures that that is converted
        to the correct value (0.0).

        """
        return np.sum(np.nan_to_num(-y*np.log(a)-(1-y)*np.log(1-a)))

    @staticmethod
    def delta(z, a, y):
        """Return the error delta from the output layer.  Note that the
        parameter ``z`` is not used by the method.  It is included in
        the method's parameters in order to make the interface
        consistent with the delta method for other cost classes.

        """
        return (a-y)


#### Main Network class
class Network(object):

    def __init__(self, sizes, cost=CrossEntropyCost):
        """The list ``sizes`` contains the number of neurons in the respective
        layers of the network.  For example, if the list was [2, 3, 1]
        then it would be a three-layer network, with the first layer
        containing 2 neurons, the second layer 3 neurons, and the
        third layer 1 neuron.  The biases and weights for the network
        are initialized randomly, using
        ``self.default_weight_initializer`` (see docstring for that
        method).

        """
        self.num_layers = len(sizes)
        self.sizes = sizes
        self.default_weight_initializer()
        self.cost=cost

    def default_weight_initializer(self):
        """Initialize each weight using a Gaussian distribution with mean 0
        and standard deviation 1 over the square root of the number of
        weights connecting to the same neuron.  Initialize the biases
        using a Gaussian distribution with mean 0 and standard
        deviation 1.

        Note that the first layer is assumed to be an input layer, and
        by convention we won't set any biases for those neurons, since
        biases are only ever used in computing the outputs from later
        layers.

        """
        self.biases = [np.random.randn(y, 1) for y in self.sizes[1:]]
        self.weights = [np.random.randn(y, x)/np.sqrt(x)
                        for x, y in zip(self.sizes[:-1], self.sizes[1:])]

    def large_weight_initializer(self):
        """Initialize the weights using a Gaussian distribution with mean 0
        and standard deviation 1.  Initialize the biases using a
        Gaussian distribution with mean 0 and standard deviation 1.

        Note that the first layer is assumed to be an input layer, and
        by convention we won't set any biases for those neurons, since
        biases are only ever used in computing the outputs from later
        layers.

        This weight and bias initializer uses the same approach as in
        Chapter 1, and is included for purposes of comparison.  It
        will usually be better to use the default weight initializer
        instead.

        """
        self.biases = [np.random.randn(y, 1) for y in self.sizes[1:]]
        self.weights = [np.random.randn(y, x)
                        for x, y in zip(self.sizes[:-1], self.sizes[1:])]

    def feedforward(self, a):
        """Return the output of the network if ``a`` is input."""
        for b, w in zip(self.biases, self.weights):
            a = sigmoid(np.dot(w, a)+b)
        return a

    def SGD(self, training_data, epochs, mini_batch_size, eta,
            lmbda = 0.0,
            evaluation_data=None,
            monitor_evaluation_cost=False,
            monitor_evaluation_accuracy=False,
            monitor_training_cost=False,
            monitor_training_accuracy=False,
            early_stopping_n = 0):
        """Train the neural network using mini-batch stochastic gradient
        descent.  The ``training_data`` is a list of tuples ``(x, y)``
        representing the training inputs and the desired outputs.  The
        other non-optional parameters are self-explanatory, as is the
        regularization parameter ``lmbda``.  The method also accepts
        ``evaluation_data``, usually either the validation or test
        data.  We can monitor the cost and accuracy on either the
        evaluation data or the training data, by setting the
        appropriate flags.  The method returns a tuple containing four
        lists: the (per-epoch) costs on the evaluation data, the
        accuracies on the evaluation data, the costs on the training
        data, and the accuracies on the training data.  All values are
        evaluated at the end of each training epoch.  So, for example,
        if we train for 30 epochs, then the first element of the tuple
        will be a 30-element list containing the cost on the
        evaluation data at the end of each epoch. Note that the lists
        are empty if the corresponding flag is not set.

        """

        # early stopping functionality:
        best_accuracy=1

        n = len(training_data)

        if evaluation_data:
            evaluation_data = list(evaluation_data)
            n_data = len(evaluation_data)

        # early stopping functionality:
        best_accuracy=0
        no_accuracy_change=0

        evaluation_cost, evaluation_accuracy = [], []
        training_cost, training_accuracy = [], []
        for j in range(epochs):
            random.shuffle(training_data)
            mini_batches = [
                training_data[k:k+mini_batch_size]
                for k in range(0, n, mini_batch_size)]
            for mini_batch in mini_batches:
                self.update_mini_batch(
                    mini_batch, eta, lmbda, len(training_data))

            print("Epoch %s training complete" % j)

            if monitor_training_cost:
                cost = self.total_cost(training_data, lmbda)
                training_cost.append(cost)
                print("Cost on training data: {}".format(cost))
            if monitor_training_accuracy:
                accuracy = self.accuracy(training_data, convert=True)
                training_accuracy.append(accuracy)
                print("Accuracy on training data: {} / {}".format(accuracy, n))
            if monitor_evaluation_cost:
                cost = self.total_cost(evaluation_data, lmbda, convert=True)
                evaluation_cost.append(cost)
                print("Cost on evaluation data: {}".format(cost))
            if monitor_evaluation_accuracy:
                accuracy = self.accuracy(evaluation_data)
                evaluation_accuracy.append(accuracy)
                print("Accuracy on evaluation data: {} / {}".format(self.accuracy(evaluation_data), n_data))

            # Early stopping:
            if early_stopping_n > 0:
                if accuracy > best_accuracy:
                    best_accuracy = accuracy
                    no_accuracy_change = 0
                    #print("Early-stopping: Best so far {}".format(best_accuracy))
                else:
                    no_accuracy_change += 1

                if (no_accuracy_change == early_stopping_n):
                    #print("Early-stopping: No accuracy change in last epochs: {}".format(early_stopping_n))
                    return evaluation_cost, evaluation_accuracy, training_cost, training_accuracy

        return evaluation_cost, evaluation_accuracy, \
            training_cost, training_accuracy

    def update_mini_batch(self, mini_batch, eta, lmbda, n):
        """Update the network's weights and biases by applying gradient
        descent using backpropagation to a single mini batch.  The
        ``mini_batch`` is a list of tuples ``(x, y)``, ``eta`` is the
        learning rate, ``lmbda`` is the regularization parameter, and
        ``n`` is the total size of the training data set.

        """
        nabla_b = [np.zeros(b.shape) for b in self.biases]
        nabla_w = [np.zeros(w.shape) for w in self.weights]
        for x, y in mini_batch:
            delta_nabla_b, delta_nabla_w = self.backprop(x, y)
            nabla_b = [nb+dnb for nb, dnb in zip(nabla_b, delta_nabla_b)]
            nabla_w = [nw+dnw for nw, dnw in zip(nabla_w, delta_nabla_w)]
        self.weights = [(1-eta*(lmbda/n))*w-(eta/len(mini_batch))*nw
                        for w, nw in zip(self.weights, nabla_w)]
        self.biases = [b-(eta/len(mini_batch))*nb
                       for b, nb in zip(self.biases, nabla_b)]

    def backprop(self, x, y):
        """Return a tuple ``(nabla_b, nabla_w)`` representing the
        gradient for the cost function C_x.  ``nabla_b`` and
        ``nabla_w`` are layer-by-layer lists of numpy arrays, similar
        to ``self.biases`` and ``self.weights``."""
        nabla_b = [np.zeros(b.shape) for b in self.biases]
        nabla_w = [np.zeros(w.shape) for w in self.weights]
        # feedforward
        activation = x
        activations = [x] # list to store all the activations, layer by layer
        zs = [] # list to store all the z vectors, layer by layer
        for b, w in zip(self.biases, self.weights):
            z = np.dot(w, activation)+b
            zs.append(z)
            activation = sigmoid(z)
            activations.append(activation)
        # backward pass
        delta = (self.cost).delta(zs[-1], activations[-1], y)
        nabla_b[-1] = delta
        nabla_w[-1] = np.dot(delta, activations[-2].transpose())
        # Note that the variable l in the loop below is used a little
        # differently to the notation in Chapter 2 of the book.  Here,
        # l = 1 means the last layer of neurons, l = 2 is the
        # second-last layer, and so on.  It's a renumbering of the
        # scheme in the book, used here to take advantage of the fact
        # that Python can use negative indices in lists.
        for l in range(2, self.num_layers):
            z = zs[-l]
            sp = sigmoid_prime(z)
            delta = np.dot(self.weights[-l+1].transpose(), delta) * sp
            nabla_b[-l] = delta
            nabla_w[-l] = np.dot(delta, activations[-l-1].transpose())
        return (nabla_b, nabla_w)

    def accuracy(self, data, convert=False):
        """Return the number of inputs in ``data`` for which the neural
        network outputs the correct result. The neural network's
        output is assumed to be the index of whichever neuron in the
        final layer has the highest activation.

        The flag ``convert`` should be set to False if the data set is
        validation or test data (the usual case), and to True if the
        data set is the training data. The need for this flag arises
        due to differences in the way the results ``y`` are
        represented in the different data sets.  In particular, it
        flags whether we need to convert between the different
        representations.  It may seem strange to use different
        representations for the different data sets.  Why not use the
        same representation for all three data sets?  It's done for
        efficiency reasons -- the program usually evaluates the cost
        on the training data and the accuracy on other data sets.
        These are different types of computations, and using different
        representations speeds things up.  More details on the
        representations can be found in
        mnist_loader.load_data_wrapper.

        """
        if convert:
            results = [(np.argmax(self.feedforward(x)), np.argmax(y))
                       for (x, y) in data]
        else:
            results = [(np.argmax(self.feedforward(x)), y)
                        for (x, y) in data]

        result_accuracy = sum(int(x == y) for (x, y) in results)
        return result_accuracy

    def total_cost(self, data, lmbda, convert=False):
        """Return the total cost for the data set ``data``.  The flag
        ``convert`` should be set to False if the data set is the
        training data (the usual case), and to True if the data set is
        the validation or test data.  See comments on the similar (but
        reversed) convention for the ``accuracy`` method, above.
        """
        cost = 0.0
        for x, y in data:
            a = self.feedforward(x)
            if convert: y = vectorized_result(y)
            cost += self.cost.fn(a, y)/len(data)
            cost += 0.5*(lmbda/len(data))*sum(np.linalg.norm(w)**2 for w in self.weights) # '**' - to the power of.
        return cost

    def save(self, filename):
        """Save the neural network to the file ``filename``."""
        data = {"sizes": self.sizes,
                "weights": [w.tolist() for w in self.weights],
                "biases": [b.tolist() for b in self.biases],
                "cost": str(self.cost.__name__)}
        f = open(filename, "w")
        json.dump(data, f)
        f.close()

#### Loading a Network
def load(filename):
    """Load a neural network from the file ``filename``.  Returns an
    instance of Network.

    """
    f = open(filename, "r")
    data = json.load(f)
    f.close()
    cost = getattr(sys.modules[__name__], data["cost"])
    net = Network(data["sizes"], cost=cost)
    net.weights = [np.array(w) for w in data["weights"]]
    net.biases = [np.array(b) for b in data["biases"]]
    return net

#### Miscellaneous functions
def vectorized_result(j):
    """Return a 10-dimensional unit vector with a 1.0 in the j'th position
    and zeroes elsewhere.  This is used to convert a digit (0...9)
    into a corresponding desired output from the neural network.

    """
    e = np.zeros((10, 1))
    e[j] = 1.0
    return e

def sigmoid(z):
    """The sigmoid function."""
    return 1.0/(1.0+np.exp(-z))

def sigmoid_prime(z):
    """Derivative of the sigmoid function."""
    return sigmoid(z)*(1-sigmoid(z))

#sys.path.append('./src/')
import mnist_loader
training_data , validation_data , test_data = mnist_loader.load_data_wrapper()
training_data = list(training_data)

#sys.path.append('./src/')
import network2
net = network2.Network([784, 30, 10], cost=network2.CrossEntropyCost)
net.large_weight_initializer()
net.SGD(training_data , 30, 10, 0.5, evaluation_data=test_data , monitor_evaluation_accuracy=True)

Epoch 0 training complete
Accuracy on evaluation data: 9076 / 10000
Epoch 1 training complete
Accuracy on evaluation data: 9163 / 10000
Epoch 2 training complete
Accuracy on evaluation data: 9301 / 10000
Epoch 3 training complete
Accuracy on evaluation data: 9291 / 10000
Epoch 4 training complete
Accuracy on evaluation data: 9345 / 10000
Epoch 5 training complete
Accuracy on evaluation data: 9341 / 10000
Epoch 6 training complete
Accuracy on evaluation data: 9404 / 10000
Epoch 7 training complete
Accuracy on evaluation data: 9363 / 10000
Epoch 8 training complete
Accuracy on evaluation data: 9438 / 10000
Epoch 9 training complete
Accuracy on evaluation data: 9436 / 10000
Epoch 10 training complete
Accuracy on evaluation data: 9459 / 10000
Epoch 11 training complete
Accuracy on evaluation data: 9391 / 10000
Epoch 12 training complete
Accuracy on evaluation data: 9454 / 10000
Epoch 13 training complete
Accuracy on evaluation data: 9453 / 10000
Epoch 14 training complete
Accuracy on evaluation data: 9456 / 10000
Epoch 15 training complete
Accuracy on evaluation data: 9453 / 10000
Epoch 16 training complete
Accuracy on evaluation data: 9488 / 10000
Epoch 17 training complete
Accuracy on evaluation data: 9473 / 10000
Epoch 18 training complete
Accuracy on evaluation data: 9479 / 10000
Epoch 19 training complete
Accuracy on evaluation data: 9485 / 10000
Epoch 20 training complete
Accuracy on evaluation data: 9499 / 10000
Epoch 21 training complete
Accuracy on evaluation data: 9488 / 10000
Epoch 22 training complete
Accuracy on evaluation data: 9508 / 10000
Epoch 23 training complete
Accuracy on evaluation data: 9472 / 10000
Epoch 24 training complete
Accuracy on evaluation data: 9465 / 10000
Epoch 25 training complete
Accuracy on evaluation data: 9493 / 10000
Epoch 26 training complete
Accuracy on evaluation data: 9477 / 10000
Epoch 27 training complete
Accuracy on evaluation data: 9509 / 10000
Epoch 28 training complete
Accuracy on evaluation data: 9502 / 10000
Epoch 29 training complete
Accuracy on evaluation data: 9478 / 10000





([],
 [9076,
  9163,
  9301,
  9291,
  9345,
  9341,
  9404,
  9363,
  9438,
  9436,
  9459,
  9391,
  9454,
  9453,
  9456,
  9453,
  9488,
  9473,
  9479,
  9485,
  9499,
  9488,
  9508,
  9472,
  9465,
  9493,
  9477,
  9509,
  9502,
  9478],
 [],
 [])

3.2 Overfitting and regularization

"""
overfitting
~~~~~~~~~~~
Plot graphs to illustrate the problem of overfitting.
"""

# Standard library
import json
import random
import sys

# My library
import mnist_loader
import network2

# Third-party libraries
import matplotlib.pyplot as plt
import numpy as np


def main(filename, num_epochs,
         training_cost_xmin=200,
         test_accuracy_xmin=200,
         test_cost_xmin=0,
         training_accuracy_xmin=0,
         training_set_size=1000,
         lmbda=0.0):
    """``filename`` is the name of the file where the results will be
    stored.  ``num_epochs`` is the number of epochs to train for.
    ``training_set_size`` is the number of images to train on.
    ``lmbda`` is the regularization parameter.  The other parameters
    set the epochs at which to start plotting on the x axis.
    """
    run_network(filename, num_epochs, training_set_size, lmbda)
    make_plots(filename, num_epochs,
               training_cost_xmin,
               test_accuracy_xmin,
               test_cost_xmin,
               training_accuracy_xmin,
               training_set_size)

def run_network(filename, num_epochs, training_set_size=1000, lmbda=0.0):
    """Train the network for ``num_epochs`` on ``training_set_size``
    images, and store the results in ``filename``.  Those results can
    later be used by ``make_plots``.  Note that the results are stored
    to disk in large part because it's convenient not to have to
    ``run_network`` each time we want to make a plot (it's slow).
    """
    # Make results more easily reproducible
    random.seed(12345678)
    np.random.seed(12345678)
    training_data, validation_data, test_data = mnist_loader.load_data_wrapper()
    training_data = list(training_data)
    net = network2.Network([784, 30, 10], cost=network2.CrossEntropyCost())
    net.large_weight_initializer()
    test_cost, test_accuracy, training_cost, training_accuracy \
        = net.SGD(training_data[:training_set_size], num_epochs, 10, 0.5,
                  evaluation_data=test_data, lmbda = lmbda,
                  monitor_evaluation_cost=True,
                  monitor_evaluation_accuracy=True,
                  monitor_training_cost=True,
                  monitor_training_accuracy=True)
    f = open(filename, "w")
    json.dump([test_cost, test_accuracy, training_cost, training_accuracy], f)
    f.close()

def make_plots(filename, num_epochs,
               training_cost_xmin=200,
               test_accuracy_xmin=200,
               test_cost_xmin=0,
               training_accuracy_xmin=0,
               training_set_size=1000):
    """Load the results from ``filename``, and generate the corresponding
    plots. """
    f = open(filename, "r")
    test_cost, test_accuracy, training_cost, training_accuracy \
        = json.load(f)
    f.close()
    plot_training_cost(training_cost, num_epochs, training_cost_xmin)
    plot_test_accuracy(test_accuracy, num_epochs, test_accuracy_xmin)
    plot_test_cost(test_cost, num_epochs, test_cost_xmin)
    plot_training_accuracy(training_accuracy, num_epochs,
                           training_accuracy_xmin, training_set_size)
    plot_overlay(test_accuracy, training_accuracy, num_epochs,
                 min(test_accuracy_xmin, training_accuracy_xmin),
                 training_set_size)

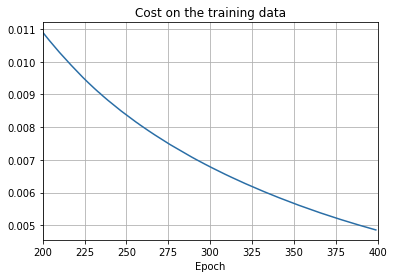

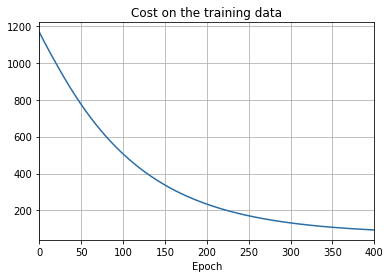

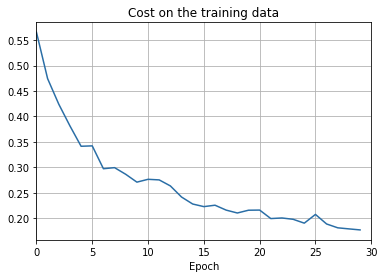

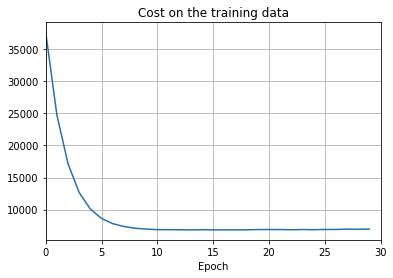

def plot_training_cost(training_cost, num_epochs, training_cost_xmin):
    fig = plt.figure()
    ax = fig.add_subplot(111)
    ax.plot(np.arange(training_cost_xmin, num_epochs),
            training_cost[training_cost_xmin:num_epochs],
            color='#2A6EA6')
    ax.set_xlim([training_cost_xmin, num_epochs])
    ax.grid(True)
    ax.set_xlabel('Epoch')
    ax.set_title('Cost on the training data')
    plt.show()

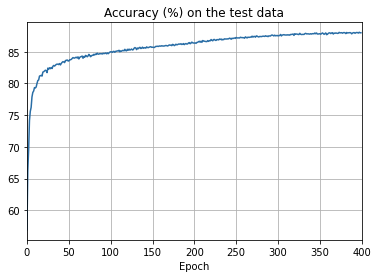

def plot_test_accuracy(test_accuracy, num_epochs, test_accuracy_xmin):
    fig = plt.figure()
    ax = fig.add_subplot(111)
    ax.plot(np.arange(test_accuracy_xmin, num_epochs),
            [accuracy/100.0
             for accuracy in test_accuracy[test_accuracy_xmin:num_epochs]],
            color='#2A6EA6')
    ax.set_xlim([test_accuracy_xmin, num_epochs])
    ax.grid(True)
    ax.set_xlabel('Epoch')
    ax.set_title('Accuracy (%) on the test data')
    plt.show()

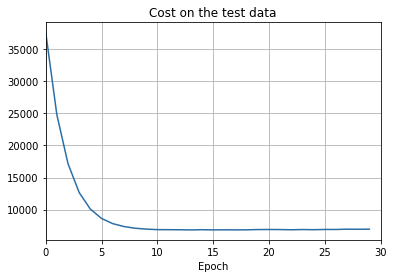

def plot_test_cost(test_cost, num_epochs, test_cost_xmin):
    fig = plt.figure()
    ax = fig.add_subplot(111)
    ax.plot(np.arange(test_cost_xmin, num_epochs),
            test_cost[test_cost_xmin:num_epochs],
            color='#2A6EA6')
    ax.set_xlim([test_cost_xmin, num_epochs])
    ax.grid(True)
    ax.set_xlabel('Epoch')
    ax.set_title('Cost on the test data')
    plt.show()

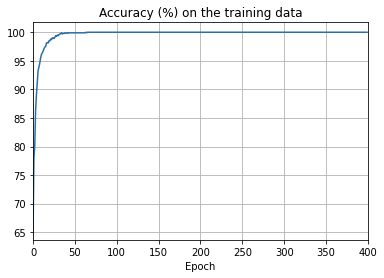

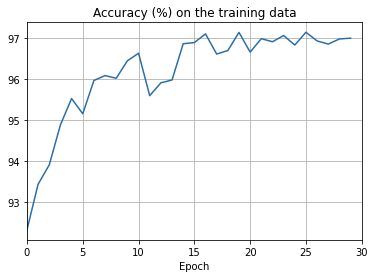

def plot_training_accuracy(training_accuracy, num_epochs,
                           training_accuracy_xmin, training_set_size):
    fig = plt.figure()
    ax = fig.add_subplot(111)
    ax.plot(np.arange(training_accuracy_xmin, num_epochs),
            [accuracy*100.0/training_set_size
             for accuracy in training_accuracy[training_accuracy_xmin:num_epochs]],
            color='#2A6EA6')
    ax.set_xlim([training_accuracy_xmin, num_epochs])
    ax.grid(True)
    ax.set_xlabel('Epoch')
    ax.set_title('Accuracy (%) on the training data')
    plt.show()

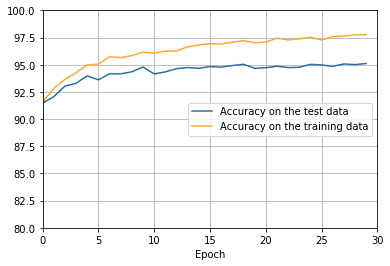

def plot_overlay(test_accuracy, training_accuracy, num_epochs, xmin,
                 training_set_size):
    fig = plt.figure()
    ax = fig.add_subplot(111)
    ax.plot(np.arange(xmin, num_epochs),
            [accuracy/100.0 for accuracy in test_accuracy],
            color='#2A6EA6',
            label="Accuracy on the test data")
    ax.plot(np.arange(xmin, num_epochs),
            [accuracy*100.0/training_set_size
             for accuracy in training_accuracy],
            color='#FFA933',
            label="Accuracy on the training data")
    ax.grid(True)
    ax.set_xlim([xmin, num_epochs])
    ax.set_xlabel('Epoch')
    ax.set_ylim([80, 100])
    plt.legend(loc="center right")
    plt.show()

sys.path.append('./src/')
import overfitting
overfitting.run_network('network2_epochs400', num_epochs = 400)

sys.path.append('./src/')
import overfitting
overfitting.make_plots('network2_epochs400', num_epochs = 400)

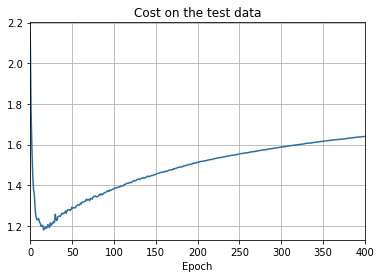

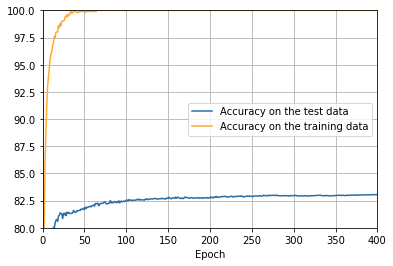

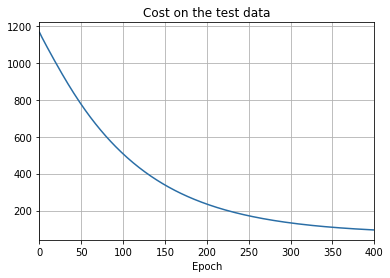

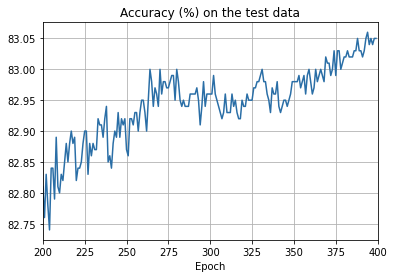

png

png

png

png

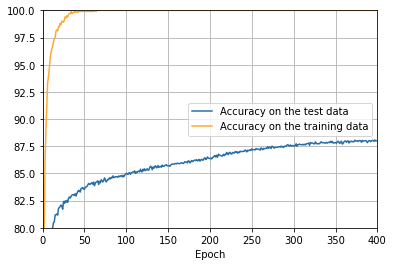

png

overfitting is much less of a problem with the full 50,000 images

sys.path.append('./src/')
import overfitting
overfitting.run_network('network2_train50000_epochs30',
                        num_epochs = 30, training_set_size=50000)

sys.path.append('./src/')
import overfitting
overfitting.make_plots('network2_train50000_epochs30', num_epochs = 30,
                       training_set_size=50000, training_cost_xmin=0,
                       test_accuracy_xmin=0)

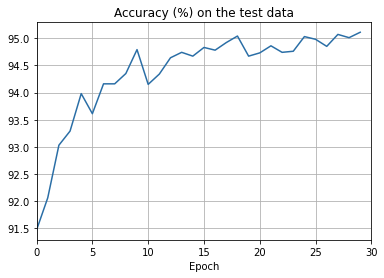

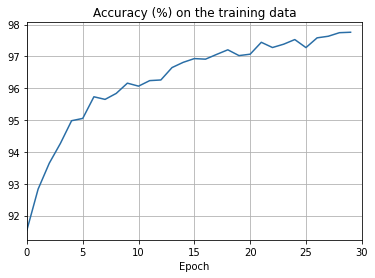

png

png

png

png

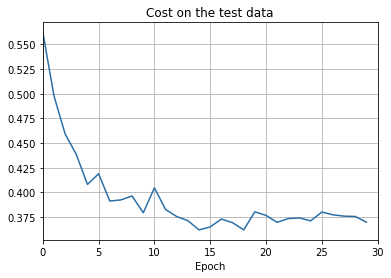

png

Regularization with lambda=0.1, 1000 training data, 400 epochs

import overfitting
overfitting.run_network('network2_train1000_epochs400lambda0.1',
                        num_epochs = 400,
                        lmbda = 0.1,
                        training_set_size=1000)

import overfitting
overfitting.make_plots('network2_train1000_epochs400lambda0.1',
                       num_epochs = 400,
                       training_set_size=1000, training_cost_xmin=0,
                       test_accuracy_xmin=0)

png

png

png

png

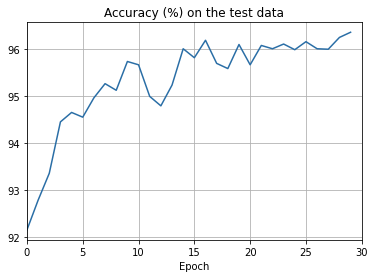

png

• The cost on the training data decreases over the whole time, much as it did in the earlier, unregularized case.

• This time the accuracy on the test_data continues to increase for the entire 400 epochs. Clearly, the use of regularization has suppressed overfitting.

Regularization with lambda=0.1, 50,000 training data, 30 epochs

import overfitting
overfitting.run_network('network2_train50000_epochs30lambda5',
                        num_epochs = 30,
                        lmbda = 5.0,
                        training_set_size=50000)

import overfitting
overfitting.make_plots('network2_train50000_epochs30lambda5',
                       num_epochs = 30,
                       training_set_size=50000,
                       training_cost_xmin=0,
                       test_accuracy_xmin=0)

png

png

png

png

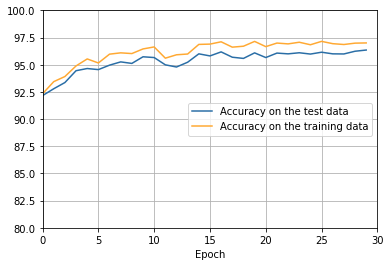

png

There’s lots of good news here. - First, our classification accuracy on the test data is up, from 95 percent when running unregularized, to 96.49 percent. That’s a big improvement. - Second, we can see that the gap between results on the training and test data is much narrower than before, running at under a percent. That’s still a significant gap, but we’ve obviously made substantial progress reducing overfitting.

100 hidden neurons, evaluation_data=validation_data

import overfitting_size784_100_10
overfitting.run_network('network2_train50000_epochs30lambda5_100_hidden_neurons',
                        num_epochs = 30,
                        lmbda = 5.0,
                        training_set_size=50000)

import overfitting_size784_100_10
overfitting.make_plots('network2_train50000_epochs30lambda5_100_hidden_neurons',
                       num_epochs = 30,
                       training_set_size=50000,
                       training_cost_xmin=0,
                       test_accuracy_xmin=0)

png

png

png

png

png

The final result is a classification accuracy of 96.5 percent on the validation data. That’s a big jump from the 30 hidden neuron case.

Artificially expanding the training data

"""more_data
~~~~~~~~~~~~

Plot graphs to illustrate the performance of MNIST when different size
training sets are used.

"""

# Standard library
import json
import random
import sys

# My library
import mnist_loader
import network2_quiet

# Third-party libraries
import matplotlib.pyplot as plt
import numpy as np
from sklearn import svm

# The sizes to use for the different training sets
SIZES = [100, 200, 500, 1000, 2000, 5000, 10000, 20000, 50000]

def main():
    run_networks()
    run_svms()
    make_plots()

def run_networks():
    # Make results more easily reproducible
    random.seed(12345678)
    np.random.seed(12345678)
    training_data, validation_data, test_data = mnist_loader.load_data_wrapper()
    training_data = list(training_data)
    validation_data = list(validation_data)
    net = network2_quiet.Network([784, 30, 10], cost=network2_quiet.CrossEntropyCost())
    accuracies = []
    for size in SIZES:
        print("\nTraining network with data set size %s" % size)
        net.large_weight_initializer()
        num_epochs = int(1500000 / size)
        net.SGD(training_data[:size], num_epochs, 10, 0.5, lmbda = size*0.0001)
        accuracy = net.accuracy(validation_data)/100.0
        print("Accuracy was %s percent" % accuracy)
        accuracies.append(accuracy)
    f = open("more_data.json", "w")
    json.dump(accuracies, f)
    f.close()

def run_svms():
    svm_training_data, svm_validation_data, svm_test_data \
        = mnist_loader.load_data()
    accuracies = []
    for size in SIZES:
        print("\nTraining SVM with data set size %s" % size)
        clf = svm.SVC()
        clf.fit(svm_training_data[0][:size], svm_training_data[1][:size])
        predictions = [int(a) for a in clf.predict(svm_validation_data[0])]
        accuracy = sum(int(a == y) for a, y in
                       zip(predictions, svm_validation_data[1])) / 100.0
        print("Accuracy was %s percent" % accuracy)
        accuracies.append(accuracy)
    f = open("more_data_svm.json", "w")
    json.dump(accuracies, f)
    f.close()

def make_plots():
    f = open("more_data.json", "r")
    accuracies = json.load(f)
    f.close()
    f = open("more_data_svm.json", "r")
    svm_accuracies = json.load(f)
    f.close()
    make_linear_plot(accuracies)
    make_log_plot(accuracies)
    make_combined_plot(accuracies, svm_accuracies)

def make_linear_plot(accuracies):
    fig = plt.figure()
    ax = fig.add_subplot(111)
    ax.plot(SIZES, accuracies, color='#2A6EA6')
    ax.plot(SIZES, accuracies, "o", color='#FFA933')
    ax.set_xlim(0, 50000)
    ax.set_ylim(60, 100)
    ax.grid(True)
    ax.set_xlabel('Training set size')
    ax.set_title('Accuracy (%) on the validation data')
    plt.show()

def make_log_plot(accuracies):
    fig = plt.figure()
    ax = fig.add_subplot(111)
    ax.plot(SIZES, accuracies, color='#2A6EA6')
    ax.plot(SIZES, accuracies, "o", color='#FFA933')
    ax.set_xlim(100, 50000)
    ax.set_ylim(60, 100)
    ax.set_xscale('log')
    ax.grid(True)
    ax.set_xlabel('Training set size')
    ax.set_title('Accuracy (%) on the validation data')
    plt.show()

def make_combined_plot(accuracies, svm_accuracies):
    fig = plt.figure()
    ax = fig.add_subplot(111)
    ax.plot(SIZES, accuracies, color='#2A6EA6')
    ax.plot(SIZES, accuracies, "o", color='#2A6EA6',
            label='Neural network accuracy (%)')
    ax.plot(SIZES, svm_accuracies, color='#FFA933')
    ax.plot(SIZES, svm_accuracies, "o", color='#FFA933',
            label='SVM accuracy (%)')
    ax.set_xlim(100, 50000)
    ax.set_ylim(25, 100)
    ax.set_xscale('log')
    ax.grid(True)
    ax.set_xlabel('Training set size')
    plt.legend(loc="lower right")
    plt.show()

if __name__ == "__main__":
    main()

import sys
sys.path.append('./src/')
import more_data
more_data.main()

Training network with data set size 100
Accuracy was 68.62 percent

Training network with data set size 200
Accuracy was 75.97 percent

Training network with data set size 500
Accuracy was 85.16 percent

Training network with data set size 1000
Accuracy was 89.05 percent

Training network with data set size 2000
Accuracy was 91.05 percent

Training network with data set size 5000
Accuracy was 93.25 percent

Training network with data set size 10000
Accuracy was 94.65 percent

Training network with data set size 20000
Accuracy was 95.52 percent

Training network with data set size 50000
Accuracy was 96.25 percent

Training SVM with data set size 100
Accuracy was 66.77 percent

Training SVM with data set size 200
Accuracy was 77.6 percent

Training SVM with data set size 500
Accuracy was 87.64 percent

Training SVM with data set size 1000
Accuracy was 91.38 percent

Training SVM with data set size 2000
Accuracy was 93.42 percent

Training SVM with data set size 5000
Accuracy was 95.65 percent

Training SVM with data set size 10000
Accuracy was 96.6 percent

Training SVM with data set size 20000
Accuracy was 97.25 percent

Training SVM with data set size 50000
Accuracy was 98.02 percent

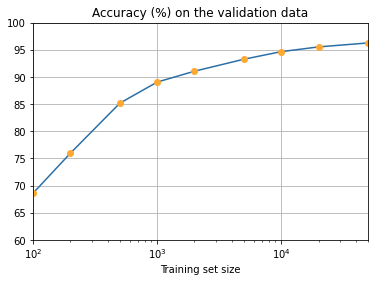

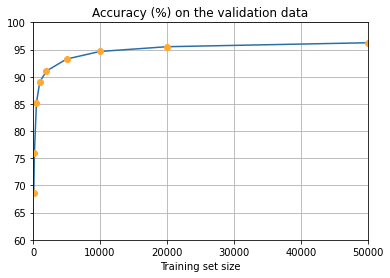

png

png

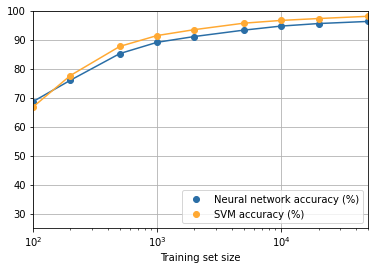

png

It seems clear that the graph is still going up toward the end. This suggests that if we used vastly more training data – say, millions or even billions of handwriting samples, instead of just 50,000 – then we’d likely get considerably better performance, even from this very small network.

3.3 Weight initialization

"""weight_initialization
~~~~~~~~~~~~~~~~~~~~~~~~

This program shows how weight initialization affects training.  In
particular, we'll plot out how the classification accuracies improve
using either large starting weights, whose standard deviation is 1, or
the default starting weights, whose standard deviation is 1 over the
square root of the number of input neurons.

"""

# Standard library
import json
import random
import sys

# My library

import mnist_loader
import network2_quiet

# Third-party libraries
import matplotlib.pyplot as plt
import numpy as np

def main(filename, n, eta):
    run_network(filename, n, eta)
    make_plot(filename)

def run_network(filename, n, eta):
    """Train the network using both the default and the large starting
    weights.  Store the results in the file with name ``filename``,
    where they can later be used by ``make_plots``.

    """
    # Make results more easily reproducible
    random.seed(12345678)
    np.random.seed(12345678)
    training_data, validation_data, test_data = mnist_loader.load_data_wrapper()
    training_data = list(training_data)

    net = network2_quiet.Network([784, n, 10], cost=network2_quiet.CrossEntropyCost)
    print("Train the network using the default starting weights.")
    net.default_weight_initializer()
    default_vc, default_va, default_tc, default_ta \
        = net.SGD(training_data, 30, 10, eta, lmbda=5.0,
                  evaluation_data=validation_data,
                  monitor_evaluation_accuracy=True,
                  monitor_evaluation_cost=True,
                  monitor_training_cost=True,
                  monitor_training_accuracy=True)
    training_data, validation_data, test_data = mnist_loader.load_data_wrapper()
    training_data = list(training_data)
    print("Train the network using the large starting weights.")
    net2 = network2_quiet.Network([784, n, 10], cost=network2_quiet.CrossEntropyCost)
    net2.large_weight_initializer()
    large_vc, large_va, large_tc, large_ta \
        = net2.SGD(training_data, 30, 10, eta, lmbda=5.0,
                  evaluation_data=validation_data,
                  monitor_evaluation_accuracy=True,
                  monitor_evaluation_cost=True,
                  monitor_training_cost=True,
                  monitor_training_accuracy=True)
    f = open(filename, "w")
    json.dump({"default_weight_initialization":
               [default_vc, default_va, default_tc, default_ta],
               "large_weight_initialization":
               [large_vc, large_va, large_tc, large_ta]},
              f)
    f.close()

def make_plot(filename):
    """Load the results from the file ``filename``, and generate the
    corresponding plot.

    """
    f = open(filename, "r")
    results = json.load(f)
    f.close()
    default_vc, default_va, default_tc, default_ta = results[
        "default_weight_initialization"]
    large_vc, large_va, large_tc, large_ta = results[
        "large_weight_initialization"]
    # Convert raw classification numbers to percentages, for plotting
    default_va = [x/100.0 for x in default_va]
    large_va = [x/100.0 for x in large_va]
    fig = plt.figure()
    ax = fig.add_subplot(111)
    ax.plot(np.arange(0, 30, 1), large_va, color='#2A6EA6',
            label="Old approach to weight initialization")
    ax.plot(np.arange(0, 30, 1), default_va, color='#FFA933',
            label="New approach to weight initialization")
    ax.set_xlim([0, 30])
    ax.set_xlabel('Epoch')
    ax.set_ylim([80, 100])
    ax.set_title('Classification accuracy')
    plt.legend(loc="lower right")
    plt.show()

if __name__ == "__main__":
    main()

import sys
sys.path.append('./src/')
import weight_initialization
weight_initialization.main(filename='weight_initialization_30',
                           n=30, eta=0.1)

Train the network using the default starting weights.
Train the network using the large starting weights.

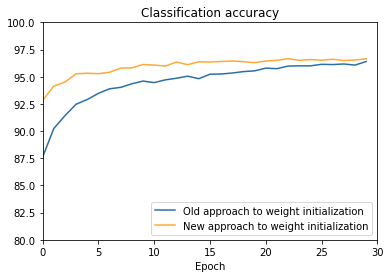

png

import weight_initialization
weight_initialization.main(filename='weight_initialization_100',
                           n=100, eta=0.1)

Train the network using the default starting weights.
Train the network using the large starting weights.

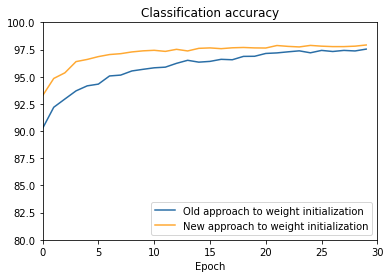

png

3.5 How to choose a neural network’s hyper-parameters?

"""multiple_eta
~~~~~~~~~~~~~~~

This program shows how different values for the learning rate affect
training.  In particular, we'll plot out how the cost changes using
three different values for eta.

"""

# Standard library
import json
import random
import sys

# My library
import mnist_loader
import network2_quiet

# Third-party libraries
import matplotlib.pyplot as plt
import numpy as np

# Constants
LEARNING_RATES = [0.025, 0.25, 2.5]
COLORS = ['#2A6EA6', '#FFCD33', '#FF7033']
NUM_EPOCHS = 30

def main():
    run_networks()
    make_plot()

def run_networks():
    """Train networks using three different values for the learning rate,
    and store the cost curves in the file ``multiple_eta.json``, where
    they can later be used by ``make_plot``.

    """
    # Make results more easily reproducible
    random.seed(12345678)
    np.random.seed(12345678)
    training_data, validation_data, test_data = mnist_loader.load_data_wrapper()
    training_data = list(training_data)
    results = []
    for eta in LEARNING_RATES:
        print("\nTrain a network using eta = "+str(eta))
        net = network2_quiet.Network([784, 30, 10])
        results.append(
            net.SGD(training_data, NUM_EPOCHS, 10, eta, lmbda=5.0,
                    evaluation_data=validation_data,
                    monitor_training_cost=True))
    f = open("multiple_eta.json", "w")
    json.dump(results, f)
    f.close()

def make_plot():
    f = open("multiple_eta.json", "r")
    results = json.load(f)
    f.close()
    fig = plt.figure()
    ax = fig.add_subplot(111)
    for eta, result, color in zip(LEARNING_RATES, results, COLORS):
        _, _, training_cost, _ = result
        ax.plot(np.arange(NUM_EPOCHS), training_cost, "o-",
                label="$\eta$ = "+str(eta),
                color=color)
    ax.set_xlim([0, NUM_EPOCHS])
    ax.set_xlabel('Epoch')
    ax.set_ylabel('Cost')
    plt.legend(loc='upper right')
    plt.show()

if __name__ == "__main__":
    main()

import sys
sys.path.append('./src/')
import multiple_eta
multiple_eta.main()

Train a network using eta = 0.025

Train a network using eta = 0.25

Train a network using eta = 2.5

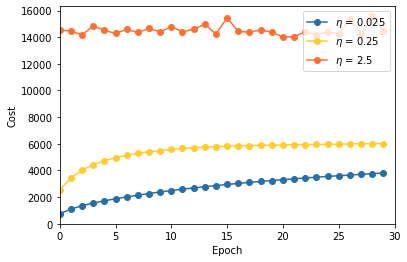

png

6.1 Introducing convolutional networks

"""network3.py
~~~~~~~~~~~~~~

A Theano-based program for training and running simple neural
networks.

Supports several layer types (fully connected, convolutional, max
pooling, softmax), and activation functions (sigmoid, tanh, and
rectified linear units, with more easily added).

When run on a CPU, this program is much faster than network.py and
network2.py.  However, unlike network.py and network2.py it can also
be run on a GPU, which makes it faster still.

Because the code is based on Theano, the code is different in many
ways from network.py and network2.py.  However, where possible I have
tried to maintain consistency with the earlier programs.  In
particular, the API is similar to network2.py.  Note that I have
focused on making the code simple, easily readable, and easily
modifiable.  It is not optimized, and omits many desirable features.

This program incorporates ideas from the Theano documentation on
convolutional neural nets (notably,
http://deeplearning.net/tutorial/lenet.html ), from Misha Denil's
implementation of dropout (https://github.com/mdenil/dropout ), and
from Chris Olah (http://colah.github.io ).

"""

#### Libraries
# Standard library
import pickle
import gzip

# Third-party libraries
import numpy as np
import theano
import theano.tensor as T
from theano.tensor.nnet import conv
from theano.tensor.nnet import conv2d
from theano.tensor.nnet import softmax
from theano.tensor import shared_randomstreams
from theano.tensor.signal.pool import pool_2d

# Activation functions for neurons
def linear(z): return z
def ReLU(z): return T.maximum(0.0, z)
from theano.tensor.nnet import sigmoid
from theano.tensor import tanh


#### Constants
GPU = False
if GPU:
    print("Trying to run under a GPU.  If this is not desired, then modify "+\
        "network3.py\nto set the GPU flag to False.")
    try: theano.config.device = 'gpu'
    except: pass # it's already set
    theano.config.floatX = 'float32'
else:
    print("Running with a CPU.  If this is not desired, then the modify "+\
        "network3.py to set\nthe GPU flag to True.")

#### Load the MNIST data
def load_data_shared(filename="mnist.pkl.gz"):
    f = gzip.open(filename, 'rb')
    training_data, validation_data, test_data = pickle.load(f, encoding="latin1")
    f.close()
    def shared(data):
        """Place the data into shared variables.  This allows Theano to copy
        the data to the GPU, if one is available.

        """
        shared_x = theano.shared(
            np.asarray(data[0], dtype=theano.config.floatX), borrow=True)
        shared_y = theano.shared(
            np.asarray(data[1], dtype=theano.config.floatX), borrow=True)
        return shared_x, T.cast(shared_y, "int32")
    return [shared(training_data), shared(validation_data), shared(test_data)]

#### Main class used to construct and train networks
class Network(object):

    def __init__(self, layers, mini_batch_size):
        """Takes a list of `layers`, describing the network architecture, and
        a value for the `mini_batch_size` to be used during training
        by stochastic gradient descent.

        """
        self.layers = layers
        self.mini_batch_size = mini_batch_size
        self.params = [param for layer in self.layers for param in layer.params]
        self.x = T.matrix("x")
        self.y = T.ivector("y")
        init_layer = self.layers[0]
        init_layer.set_inpt(self.x, self.x, self.mini_batch_size)
        for j in range(1, len(self.layers)): # xrange() was renamed to range() in Python 3.
            prev_layer, layer  = self.layers[j-1], self.layers[j]
            layer.set_inpt(
                prev_layer.output, prev_layer.output_dropout, self.mini_batch_size)
        self.output = self.layers[-1].output
        self.output_dropout = self.layers[-1].output_dropout

    def SGD(self, training_data, epochs, mini_batch_size, eta,
            validation_data, test_data, lmbda=0.0):
        """Train the network using mini-batch stochastic gradient descent."""
        training_x, training_y = training_data
        validation_x, validation_y = validation_data
        test_x, test_y = test_data

        # compute number of minibatches for training, validation and testing
        num_training_batches = int(size(training_data)/mini_batch_size)
        num_validation_batches = int(size(validation_data)/mini_batch_size)
        num_test_batches = int(size(test_data)/mini_batch_size)

        # define the (regularized) cost function, symbolic gradients, and updates
        l2_norm_squared = sum([(layer.w**2).sum() for layer in self.layers])
        cost = self.layers[-1].cost(self)+\
               0.5*lmbda*l2_norm_squared/num_training_batches
        grads = T.grad(cost, self.params)
        updates = [(param, param-eta*grad)
                   for param, grad in zip(self.params, grads)]

        # define functions to train a mini-batch, and to compute the
        # accuracy in validation and test mini-batches.
        i = T.lscalar() # mini-batch index
        train_mb = theano.function(
            [i], cost, updates=updates,
            givens={
                self.x:
                training_x[i*self.mini_batch_size: (i+1)*self.mini_batch_size],
                self.y:
                training_y[i*self.mini_batch_size: (i+1)*self.mini_batch_size]
            })
        validate_mb_accuracy = theano.function(
            [i], self.layers[-1].accuracy(self.y),
            givens={
                self.x:
                validation_x[i*self.mini_batch_size: (i+1)*self.mini_batch_size],
                self.y:
                validation_y[i*self.mini_batch_size: (i+1)*self.mini_batch_size]
            })
        test_mb_accuracy = theano.function(
            [i], self.layers[-1].accuracy(self.y),
            givens={
                self.x:
                test_x[i*self.mini_batch_size: (i+1)*self.mini_batch_size],
                self.y:
                test_y[i*self.mini_batch_size: (i+1)*self.mini_batch_size]
            })
        self.test_mb_predictions = theano.function(
            [i], self.layers[-1].y_out,
            givens={
                self.x:
                test_x[i*self.mini_batch_size: (i+1)*self.mini_batch_size]
            })
        # Do the actual training
        best_validation_accuracy = 0.0
        for epoch in range(epochs):
            for minibatch_index in range(num_training_batches):
                iteration = num_training_batches*epoch+minibatch_index
                if iteration % 100000 == 0:
                    print("Training mini-batch number {0}".format(iteration))
                cost_ij = train_mb(minibatch_index)
                if (iteration+1) % num_training_batches == 0:
                    validation_accuracy = np.mean(
                        [validate_mb_accuracy(j) for j in range(num_validation_batches)])
                    print("Epoch {0}: validation accuracy {1:.2%}".format(
                        epoch, validation_accuracy))
                    if validation_accuracy >= best_validation_accuracy:
                        print("This is the best validation accuracy to date.")
                        best_validation_accuracy = validation_accuracy
                        best_iteration = iteration
                        if test_data:
                            test_accuracy = np.mean(
                                [test_mb_accuracy(j) for j in range(num_test_batches)])
                            print('The corresponding test accuracy is {0:.2%}'.format(
                                test_accuracy))
        print("Finished training network.")
        print("Best validation accuracy of {0:.2%} obtained at iteration {1}".format(
            best_validation_accuracy, best_iteration))
        print("Corresponding test accuracy of {0:.2%}".format(test_accuracy))

#### Define layer types

class ConvPoolLayer(object):
    """Used to create a combination of a convolutional and a max-pooling
    layer.  A more sophisticated implementation would separate the
    two, but for our purposes we'll always use them together, and it
    simplifies the code, so it makes sense to combine them.

    """

    def __init__(self, filter_shape, image_shape, poolsize=(2, 2),
                 activation_fn=sigmoid):
        """`filter_shape` is a tuple of length 4, whose entries are the number
        of filters, the number of input feature maps, the filter height, and the
        filter width.

        `image_shape` is a tuple of length 4, whose entries are the
        mini-batch size, the number of input feature maps, the image
        height, and the image width.

        `poolsize` is a tuple of length 2, whose entries are the y and
        x pooling sizes.

        """
        self.filter_shape = filter_shape
        self.image_shape = image_shape
        self.poolsize = poolsize
        self.activation_fn=activation_fn
        # initialize weights and biases
        n_out = (filter_shape[0]*np.prod(filter_shape[2:])/np.prod(poolsize))
        self.w = theano.shared(
            np.asarray(
                np.random.normal(loc=0, scale=np.sqrt(1.0/n_out), size=filter_shape),
                dtype=theano.config.floatX),
            borrow=True)
        self.b = theano.shared(
            np.asarray(
                np.random.normal(loc=0, scale=1.0, size=(filter_shape[0],)),
                dtype=theano.config.floatX),
            borrow=True)
        self.params = [self.w, self.b]

    def set_inpt(self, inpt, inpt_dropout, mini_batch_size):
        self.inpt = inpt.reshape(self.image_shape)
        conv_out = conv2d(
            input=self.inpt, filters=self.w, filter_shape=self.filter_shape,
            input_shape=self.image_shape)
        pooled_out = pool_2d(
            input=conv_out, ws=self.poolsize, ignore_border=True)
        self.output = self.activation_fn(
            pooled_out + self.b.dimshuffle('x', 0, 'x', 'x'))
        self.output_dropout = self.output # no dropout in the convolutional layers

class FullyConnectedLayer(object):

    def __init__(self, n_in, n_out, activation_fn=sigmoid, p_dropout=0.0):
        self.n_in = n_in
        self.n_out = n_out
        self.activation_fn = activation_fn
        self.p_dropout = p_dropout
        # Initialize weights and biases
        self.w = theano.shared(
            np.asarray(
                np.random.normal(
                    loc=0.0, scale=np.sqrt(1.0/n_out), size=(n_in, n_out)),
                dtype=theano.config.floatX),
            name='w', borrow=True)
        self.b = theano.shared(
            np.asarray(np.random.normal(loc=0.0, scale=1.0, size=(n_out,)),
                       dtype=theano.config.floatX),
            name='b', borrow=True)
        self.params = [self.w, self.b]

    def set_inpt(self, inpt, inpt_dropout, mini_batch_size):
        self.inpt = inpt.reshape((mini_batch_size, self.n_in))
        self.output = self.activation_fn(
            (1-self.p_dropout)*T.dot(self.inpt, self.w) + self.b)
        self.y_out = T.argmax(self.output, axis=1)
        self.inpt_dropout = dropout_layer(
            inpt_dropout.reshape((mini_batch_size, self.n_in)), self.p_dropout)
        self.output_dropout = self.activation_fn(
            T.dot(self.inpt_dropout, self.w) + self.b)

    def accuracy(self, y):
        "Return the accuracy for the mini-batch."
        return T.mean(T.eq(y, self.y_out))

class SoftmaxLayer(object):

    def __init__(self, n_in, n_out, p_dropout=0.0):
        self.n_in = n_in
        self.n_out = n_out
        self.p_dropout = p_dropout
        # Initialize weights and biases
        self.w = theano.shared(
            np.zeros((n_in, n_out), dtype=theano.config.floatX),
            name='w', borrow=True)
        self.b = theano.shared(
            np.zeros((n_out,), dtype=theano.config.floatX),
            name='b', borrow=True)
        self.params = [self.w, self.b]

    def set_inpt(self, inpt, inpt_dropout, mini_batch_size):
        self.inpt = inpt.reshape((mini_batch_size, self.n_in))
        self.output = softmax((1-self.p_dropout)*T.dot(self.inpt, self.w) + self.b)
        self.y_out = T.argmax(self.output, axis=1)
        self.inpt_dropout = dropout_layer(
            inpt_dropout.reshape((mini_batch_size, self.n_in)), self.p_dropout)
        self.output_dropout = softmax(T.dot(self.inpt_dropout, self.w) + self.b)

    def cost(self, net):
        "Return the log-likelihood cost."
        return -T.mean(T.log(self.output_dropout)[T.arange(net.y.shape[0]), net.y])

    def accuracy(self, y):
        "Return the accuracy for the mini-batch."
        return T.mean(T.eq(y, self.y_out))


#### Miscellanea
def size(data):
    "Return the size of the dataset `data`."
    return data[0].get_value(borrow=True).shape[0]

def dropout_layer(layer, p_dropout):
    srng = shared_randomstreams.RandomStreams(
        np.random.RandomState(0).randint(999999))
    mask = srng.binomial(n=1, p=1-p_dropout, size=layer.shape)
    return layer*T.cast(mask, theano.config.floatX)

import sys
sys.path.append('./src/')
import network3
from network3 import Network
from network3 import ConvPoolLayer , FullyConnectedLayer , SoftmaxLayer

Running with a CPU.  If this is not desired, then the modify network3.py to set
the GPU flag to True.

training_data , validation_data , test_data = network3.load_data_shared()
mini_batch_size = 10

net = Network([FullyConnectedLayer(n_in=784, n_out=100),SoftmaxLayer(n_in=100, n_out=10)], mini_batch_size)

net.SGD(training_data, 60, mini_batch_size, 0.1, validation_data, test_data)

Training mini-batch number 0
Epoch 0: validation accuracy 92.53%
The corresponding test accuracy is 91.76%
Epoch 1: validation accuracy 94.68%
The corresponding test accuracy is 94.07%
Epoch 2: validation accuracy 95.85%
The corresponding test accuracy is 95.19%
Epoch 3: validation accuracy 96.47%
The corresponding test accuracy is 95.76%
Epoch 4: validation accuracy 96.78%
The corresponding test accuracy is 96.30%
Epoch 5: validation accuracy 97.04%
The corresponding test accuracy is 96.66%
Epoch 6: validation accuracy 97.22%
The corresponding test accuracy is 96.93%
Epoch 7: validation accuracy 97.26%
The corresponding test accuracy is 97.14%
Epoch 8: validation accuracy 97.38%
The corresponding test accuracy is 97.25%
Epoch 9: validation accuracy 97.37%
Epoch 10: validation accuracy 97.38%
The corresponding test accuracy is 97.38%
Epoch 11: validation accuracy 97.39%
The corresponding test accuracy is 97.40%
Epoch 12: validation accuracy 97.49%
The corresponding test accuracy is 97.48%
Epoch 13: validation accuracy 97.48%
Epoch 14: validation accuracy 97.48%
Epoch 15: validation accuracy 97.51%
The corresponding test accuracy is 97.61%
Epoch 16: validation accuracy 97.55%
The corresponding test accuracy is 97.63%
Epoch 17: validation accuracy 97.53%
Epoch 18: validation accuracy 97.57%
The corresponding test accuracy is 97.68%
Epoch 19: validation accuracy 97.57%
The corresponding test accuracy is 97.66%
Training mini-batch number 100000
Epoch 20: validation accuracy 97.59%
The corresponding test accuracy is 97.66%
Epoch 21: validation accuracy 97.55%
Epoch 22: validation accuracy 97.56%
Epoch 23: validation accuracy 97.57%
Epoch 24: validation accuracy 97.60%
The corresponding test accuracy is 97.59%
Epoch 25: validation accuracy 97.64%
The corresponding test accuracy is 97.60%
Epoch 26: validation accuracy 97.65%
The corresponding test accuracy is 97.60%
Epoch 27: validation accuracy 97.68%
The corresponding test accuracy is 97.61%
Epoch 28: validation accuracy 97.68%
The corresponding test accuracy is 97.60%
Epoch 29: validation accuracy 97.68%
The corresponding test accuracy is 97.62%
Epoch 30: validation accuracy 97.68%
Epoch 31: validation accuracy 97.68%
Epoch 32: validation accuracy 97.66%
Epoch 33: validation accuracy 97.67%
Epoch 34: validation accuracy 97.67%
Epoch 35: validation accuracy 97.66%
Epoch 36: validation accuracy 97.67%
Epoch 37: validation accuracy 97.70%
The corresponding test accuracy is 97.73%
Epoch 38: validation accuracy 97.70%
The corresponding test accuracy is 97.73%
Epoch 39: validation accuracy 97.71%
The corresponding test accuracy is 97.73%
Training mini-batch number 200000
Epoch 40: validation accuracy 97.72%
The corresponding test accuracy is 97.72%
Epoch 41: validation accuracy 97.73%
The corresponding test accuracy is 97.73%
Epoch 42: validation accuracy 97.74%
The corresponding test accuracy is 97.73%
Epoch 43: validation accuracy 97.73%
Epoch 44: validation accuracy 97.75%
The corresponding test accuracy is 97.74%
Epoch 45: validation accuracy 97.75%
The corresponding test accuracy is 97.76%
Epoch 46: validation accuracy 97.74%
Epoch 47: validation accuracy 97.75%
The corresponding test accuracy is 97.75%
Epoch 48: validation accuracy 97.77%
The corresponding test accuracy is 97.74%
Epoch 49: validation accuracy 97.77%
The corresponding test accuracy is 97.76%
Epoch 50: validation accuracy 97.78%
The corresponding test accuracy is 97.77%
Epoch 51: validation accuracy 97.78%
The corresponding test accuracy is 97.79%
Epoch 52: validation accuracy 97.78%
The corresponding test accuracy is 97.79%
Epoch 53: validation accuracy 97.77%
Epoch 54: validation accuracy 97.77%
Epoch 55: validation accuracy 97.77%
Epoch 56: validation accuracy 97.76%
Epoch 57: validation accuracy 97.75%
Epoch 58: validation accuracy 97.76%
Epoch 59: validation accuracy 97.76%
Finished training network.
Best validation accuracy of 97.78% obtained at iteration 264999
Corresponding test accuracy of 97.79%

I obtained a best classification accuracy of 97.79 percent.

Let’s begin by inserting a convolutional layer, right at the beginning of the network. We’ll use 5 by 5 local receptive fields, a stride length of 1, and 20 feature maps. We’ll also insert a max-pooling layer, which combines the features using 2 by 2 pooling windows. So the overall network architecture looks much like the architecture discussed in the last section, but with an extra fully-connected layer:

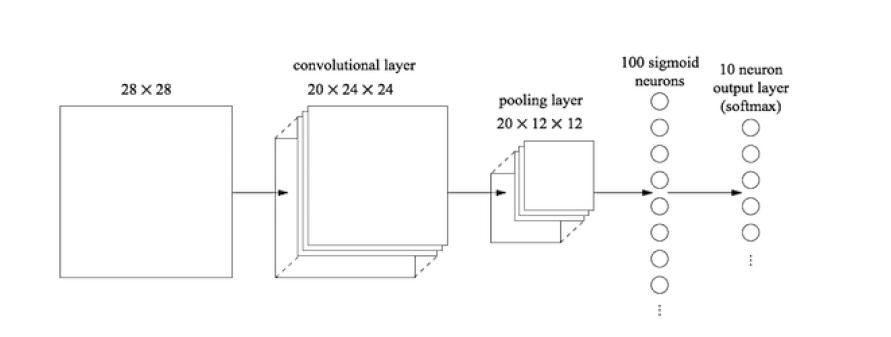

convolutional_network

net = Network([ConvPoolLayer(image_shape=(mini_batch_size , 1, 28, 28),
                             filter_shape=(20, 1, 5, 5),
                             poolsize=(2, 2)),
               FullyConnectedLayer(n_in=20*12*12, n_out=100),
               SoftmaxLayer(n_in=100, n_out=10)], mini_batch_size)

net.SGD(training_data, 60, mini_batch_size, 0.1, validation_data, test_data)

Training mini-batch number 0
Epoch 0: validation accuracy 94.32%
The corresponding test accuracy is 93.55%
Epoch 1: validation accuracy 96.35%
The corresponding test accuracy is 95.89%
Epoch 2: validation accuracy 97.25%
The corresponding test accuracy is 96.92%
Epoch 3: validation accuracy 97.75%
The corresponding test accuracy is 97.42%
Epoch 4: validation accuracy 97.96%
The corresponding test accuracy is 97.75%
Epoch 5: validation accuracy 98.15%
The corresponding test accuracy is 97.90%
Epoch 6: validation accuracy 98.28%
The corresponding test accuracy is 98.10%
Epoch 7: validation accuracy 98.34%
The corresponding test accuracy is 98.26%
Epoch 8: validation accuracy 98.39%
The corresponding test accuracy is 98.45%
Epoch 9: validation accuracy 98.44%
The corresponding test accuracy is 98.51%
Epoch 10: validation accuracy 98.51%
The corresponding test accuracy is 98.52%
Epoch 11: validation accuracy 98.54%
The corresponding test accuracy is 98.55%
Epoch 12: validation accuracy 98.58%
The corresponding test accuracy is 98.59%
Epoch 13: validation accuracy 98.60%
The corresponding test accuracy is 98.59%
Epoch 14: validation accuracy 98.61%
The corresponding test accuracy is 98.67%
Epoch 15: validation accuracy 98.60%
Epoch 16: validation accuracy 98.62%
The corresponding test accuracy is 98.72%
Epoch 17: validation accuracy 98.63%
The corresponding test accuracy is 98.70%
Epoch 18: validation accuracy 98.64%
The corresponding test accuracy is 98.75%
Epoch 19: validation accuracy 98.66%
The corresponding test accuracy is 98.75%
Training mini-batch number 100000
Epoch 20: validation accuracy 98.69%
The corresponding test accuracy is 98.76%
Epoch 21: validation accuracy 98.69%
The corresponding test accuracy is 98.76%
Epoch 22: validation accuracy 98.71%
The corresponding test accuracy is 98.79%
Epoch 23: validation accuracy 98.70%
Epoch 24: validation accuracy 98.70%
Epoch 25: validation accuracy 98.72%
The corresponding test accuracy is 98.77%
Epoch 26: validation accuracy 98.72%
The corresponding test accuracy is 98.76%
Epoch 27: validation accuracy 98.72%
The corresponding test accuracy is 98.76%
Epoch 28: validation accuracy 98.73%
The corresponding test accuracy is 98.77%
Epoch 29: validation accuracy 98.75%
The corresponding test accuracy is 98.79%
Epoch 30: validation accuracy 98.75%
The corresponding test accuracy is 98.78%
Epoch 31: validation accuracy 98.74%
Epoch 32: validation accuracy 98.75%
The corresponding test accuracy is 98.75%
Epoch 33: validation accuracy 98.75%
The corresponding test accuracy is 98.74%
Epoch 34: validation accuracy 98.74%
Epoch 35: validation accuracy 98.74%
Epoch 36: validation accuracy 98.75%
The corresponding test accuracy is 98.74%
Epoch 37: validation accuracy 98.75%
The corresponding test accuracy is 98.75%
Epoch 38: validation accuracy 98.76%
The corresponding test accuracy is 98.74%
Epoch 39: validation accuracy 98.77%
The corresponding test accuracy is 98.75%
Training mini-batch number 200000
Epoch 40: validation accuracy 98.76%
Epoch 41: validation accuracy 98.76%
Epoch 42: validation accuracy 98.77%
The corresponding test accuracy is 98.77%
Epoch 43: validation accuracy 98.77%
The corresponding test accuracy is 98.76%
Epoch 44: validation accuracy 98.77%
The corresponding test accuracy is 98.78%
Epoch 45: validation accuracy 98.77%
The corresponding test accuracy is 98.79%
Epoch 46: validation accuracy 98.77%
The corresponding test accuracy is 98.79%
Epoch 47: validation accuracy 98.77%
The corresponding test accuracy is 98.79%
Epoch 48: validation accuracy 98.77%
The corresponding test accuracy is 98.78%
Epoch 49: validation accuracy 98.78%
The corresponding test accuracy is 98.78%
Epoch 50: validation accuracy 98.78%
The corresponding test accuracy is 98.79%
Epoch 51: validation accuracy 98.79%
The corresponding test accuracy is 98.79%
Epoch 52: validation accuracy 98.80%
The corresponding test accuracy is 98.79%
Epoch 53: validation accuracy 98.80%
The corresponding test accuracy is 98.79%
Epoch 54: validation accuracy 98.80%
The corresponding test accuracy is 98.80%
Epoch 55: validation accuracy 98.82%
The corresponding test accuracy is 98.80%
Epoch 56: validation accuracy 98.81%
Epoch 57: validation accuracy 98.81%
Epoch 58: validation accuracy 98.81%
Epoch 59: validation accuracy 98.81%
Finished training network.
Best validation accuracy of 98.82% obtained at iteration 279999
Corresponding test accuracy of 98.80%

That gets us to 98.80 percent accuracy, which is a considerable improvement over any of our previous results.

Let’s try inserting a second convolutional-pooling layer. We’ll make the insertion between the existing convolutional-pooling layer and the fully-connected hidden layer. Again, we’ll use a \(5\times 5\) local receptive field, and pool over \(2 \times 2\) regions. Let’s see what happens when we train using similar hyper-parameters to before:

net = Network([ConvPoolLayer(image_shape=(mini_batch_size , 1, 28, 28),
                             filter_shape=(20, 1, 5, 5),
                             poolsize=(2, 2)),
               ConvPoolLayer(image_shape=(mini_batch_size , 20, 12, 12),
                             filter_shape=(40, 20, 5, 5),
                             poolsize=(2, 2)),
               FullyConnectedLayer(n_in=40*4*4, n_out=100),
               SoftmaxLayer(n_in=100, n_out=10)], mini_batch_size)

net.SGD(training_data, 60, mini_batch_size, 0.1, validation_data, test_data)

Training mini-batch number 0
Epoch 0: validation accuracy 92.86%
The corresponding test accuracy is 92.59%
Epoch 1: validation accuracy 96.78%
The corresponding test accuracy is 96.52%
Epoch 2: validation accuracy 97.70%
The corresponding test accuracy is 97.48%
Epoch 3: validation accuracy 98.04%
The corresponding test accuracy is 97.85%
Epoch 4: validation accuracy 98.22%
The corresponding test accuracy is 98.15%
Epoch 5: validation accuracy 98.40%
The corresponding test accuracy is 98.33%
Epoch 6: validation accuracy 98.52%
The corresponding test accuracy is 98.46%
Epoch 7: validation accuracy 98.59%
The corresponding test accuracy is 98.52%
Epoch 8: validation accuracy 98.62%
The corresponding test accuracy is 98.54%
Epoch 9: validation accuracy 98.65%
The corresponding test accuracy is 98.62%
Epoch 10: validation accuracy 98.70%
The corresponding test accuracy is 98.67%
Epoch 11: validation accuracy 98.71%
The corresponding test accuracy is 98.69%
Epoch 12: validation accuracy 98.76%
The corresponding test accuracy is 98.76%
Epoch 13: validation accuracy 98.76%
Epoch 14: validation accuracy 98.80%
The corresponding test accuracy is 98.83%
Epoch 15: validation accuracy 98.85%
The corresponding test accuracy is 98.86%
Epoch 16: validation accuracy 98.89%
The corresponding test accuracy is 98.90%
Epoch 17: validation accuracy 98.93%
The corresponding test accuracy is 98.95%
Epoch 18: validation accuracy 98.91%
Epoch 19: validation accuracy 98.92%
Training mini-batch number 100000
Epoch 20: validation accuracy 98.91%
Epoch 21: validation accuracy 98.92%
Epoch 22: validation accuracy 98.91%
Epoch 23: validation accuracy 98.92%
Epoch 24: validation accuracy 98.95%
The corresponding test accuracy is 98.99%
Epoch 25: validation accuracy 98.97%
The corresponding test accuracy is 98.99%
Epoch 26: validation accuracy 98.97%
The corresponding test accuracy is 99.01%
Epoch 27: validation accuracy 98.98%
The corresponding test accuracy is 99.03%
Epoch 28: validation accuracy 99.01%
The corresponding test accuracy is 99.01%
Epoch 29: validation accuracy 99.04%
The corresponding test accuracy is 99.00%
Epoch 30: validation accuracy 99.05%
The corresponding test accuracy is 99.01%
Epoch 31: validation accuracy 99.05%
The corresponding test accuracy is 99.02%
Epoch 32: validation accuracy 99.08%
The corresponding test accuracy is 99.02%
Epoch 33: validation accuracy 99.10%
The corresponding test accuracy is 99.01%
Epoch 34: validation accuracy 99.08%
Epoch 35: validation accuracy 99.08%
Epoch 36: validation accuracy 99.07%
Epoch 37: validation accuracy 99.07%
Epoch 38: validation accuracy 99.06%
Epoch 39: validation accuracy 99.06%
Training mini-batch number 200000
Epoch 40: validation accuracy 99.05%
Epoch 41: validation accuracy 99.05%
Epoch 42: validation accuracy 99.05%
Epoch 43: validation accuracy 99.04%
Epoch 44: validation accuracy 99.04%
Epoch 45: validation accuracy 99.04%
Epoch 46: validation accuracy 99.05%
Epoch 47: validation accuracy 99.05%
Epoch 48: validation accuracy 99.06%
Epoch 49: validation accuracy 99.06%
Epoch 50: validation accuracy 99.07%
Epoch 51: validation accuracy 99.09%
Epoch 52: validation accuracy 99.09%
Epoch 53: validation accuracy 99.08%
Epoch 54: validation accuracy 99.09%
Epoch 55: validation accuracy 99.08%
Epoch 56: validation accuracy 99.09%
Epoch 57: validation accuracy 99.10%
The corresponding test accuracy is 99.06%
Epoch 58: validation accuracy 99.10%
The corresponding test accuracy is 99.06%
Epoch 59: validation accuracy 99.09%
Finished training network.
Best validation accuracy of 99.10% obtained at iteration 294999
Corresponding test accuracy of 99.06%

Once again, we get an improvement: we’re now at 99.06 percent classification accuracy!

from network3 import ReLU
net = Network([ConvPoolLayer(image_shape=(mini_batch_size , 1, 28, 28),
                             filter_shape=(20, 1, 5, 5), poolsize=(2, 2), activation_fn=ReLU),
               ConvPoolLayer(image_shape=(mini_batch_size , 20, 12, 12), filter_shape=(40, 20, 5, 5),
                             poolsize=(2, 2), activation_fn=ReLU),
               FullyConnectedLayer(n_in=40*4*4, n_out=100, activation_fn=ReLU),
               SoftmaxLayer(n_in=100, n_out=10)], mini_batch_size)

net.SGD(training_data , 60, mini_batch_size , 0.03, validation_data , test_data ,lmbda=0.1)

Training mini-batch number 0
Epoch 0: validation accuracy 97.37%
The corresponding test accuracy is 96.92%
Epoch 1: validation accuracy 98.00%
The corresponding test accuracy is 98.14%
Epoch 2: validation accuracy 98.23%
The corresponding test accuracy is 98.40%
Epoch 3: validation accuracy 98.39%
The corresponding test accuracy is 98.50%
Epoch 4: validation accuracy 98.38%
Epoch 5: validation accuracy 98.45%
The corresponding test accuracy is 98.58%
Epoch 6: validation accuracy 98.74%
The corresponding test accuracy is 98.68%
Epoch 7: validation accuracy 98.76%
The corresponding test accuracy is 98.72%
Epoch 8: validation accuracy 98.64%
Epoch 9: validation accuracy 98.22%
Epoch 10: validation accuracy 98.86%
The corresponding test accuracy is 98.79%
Epoch 11: validation accuracy 98.65%
Epoch 12: validation accuracy 99.05%
The corresponding test accuracy is 98.92%
Epoch 13: validation accuracy 98.78%
Epoch 14: validation accuracy 98.84%
Epoch 15: validation accuracy 98.77%
Epoch 16: validation accuracy 98.92%
Epoch 17: validation accuracy 98.84%
Epoch 18: validation accuracy 98.98%
Epoch 19: validation accuracy 98.85%
Training mini-batch number 100000
Epoch 20: validation accuracy 98.95%
Epoch 21: validation accuracy 99.09%
The corresponding test accuracy is 98.99%
Epoch 22: validation accuracy 99.02%
Epoch 23: validation accuracy 98.97%
Epoch 24: validation accuracy 99.04%
Epoch 25: validation accuracy 99.07%
Epoch 26: validation accuracy 99.07%
Epoch 27: validation accuracy 99.06%
Epoch 28: validation accuracy 99.06%
Epoch 29: validation accuracy 99.07%
Epoch 30: validation accuracy 99.07%
Epoch 31: validation accuracy 99.07%
Epoch 32: validation accuracy 99.09%
The corresponding test accuracy is 99.11%
Epoch 33: validation accuracy 99.09%
The corresponding test accuracy is 99.11%
Epoch 34: validation accuracy 99.09%
The corresponding test accuracy is 99.13%
Epoch 35: validation accuracy 99.09%
The corresponding test accuracy is 99.13%
Epoch 36: validation accuracy 99.10%
The corresponding test accuracy is 99.12%
Epoch 37: validation accuracy 99.10%
The corresponding test accuracy is 99.12%
Epoch 38: validation accuracy 99.12%
The corresponding test accuracy is 99.10%
Epoch 39: validation accuracy 99.12%
The corresponding test accuracy is 99.11%
Training mini-batch number 200000
Epoch 40: validation accuracy 99.12%
The corresponding test accuracy is 99.11%
Epoch 41: validation accuracy 99.13%
The corresponding test accuracy is 99.10%
Epoch 42: validation accuracy 99.13%
The corresponding test accuracy is 99.11%
Epoch 43: validation accuracy 99.13%
The corresponding test accuracy is 99.11%
Epoch 44: validation accuracy 99.13%
The corresponding test accuracy is 99.11%
Epoch 45: validation accuracy 99.14%
The corresponding test accuracy is 99.12%
Epoch 46: validation accuracy 99.14%
The corresponding test accuracy is 99.12%
Epoch 47: validation accuracy 99.15%
The corresponding test accuracy is 99.12%
Epoch 48: validation accuracy 99.15%
The corresponding test accuracy is 99.12%
Epoch 49: validation accuracy 99.16%
The corresponding test accuracy is 99.12%
Epoch 50: validation accuracy 99.16%
The corresponding test accuracy is 99.12%
Epoch 51: validation accuracy 99.17%
The corresponding test accuracy is 99.12%
Epoch 52: validation accuracy 99.16%
Epoch 53: validation accuracy 99.16%
Epoch 54: validation accuracy 99.17%
The corresponding test accuracy is 99.11%
Epoch 55: validation accuracy 99.17%
The corresponding test accuracy is 99.11%
Epoch 56: validation accuracy 99.17%
The corresponding test accuracy is 99.10%
Epoch 57: validation accuracy 99.17%
The corresponding test accuracy is 99.10%
Epoch 58: validation accuracy 99.17%
The corresponding test accuracy is 99.10%
Epoch 59: validation accuracy 99.17%
The corresponding test accuracy is 99.10%
Finished training network.
Best validation accuracy of 99.17% obtained at iteration 299999
Corresponding test accuracy of 99.10%

"""expand_mnist.py
~~~~~~~~~~~~~~~~~~

Take the 50,000 MNIST training images, and create an expanded set of
250,000 images, by displacing each training image up, down, left and
right, by one pixel.  Save the resulting file to
../data/mnist_expanded.pkl.gz.

Note that this program is memory intensive, and may not run on small
systems.

"""

from __future__ import print_function

#### Libraries

# Standard library
import pickle
import gzip
import os.path
import random

# Third-party libraries
import numpy as np

print("Expanding the MNIST training set")

if os.path.exists("../data/mnist_expanded.pkl.gz"):
    print("The expanded training set already exists.  Exiting.")
else:
    f = gzip.open("../data/mnist.pkl.gz", 'rb')
    u = pickle._Unpickler(f)
    u.encoding = 'latin1'
    training_data, validation_data, test_data = u.load()
    f.close()
    expanded_training_pairs = []
    j = 0 # counter
    for x, y in zip(training_data[0], training_data[1]):
        expanded_training_pairs.append((x, y))
        image = np.reshape(x, (-1, 28))
        j += 1
        if j % 1000 == 0: print("Expanding image number", j)
        # iterate over data telling us the details of how to
        # do the displacement
        for d, axis, index_position, index in [
                (1,  0, "first", 0),
                (-1, 0, "first", 27),
                (1,  1, "last",  0),
                (-1, 1, "last",  27)]:
            new_img = np.roll(image, d, axis)
            if index_position == "first":
                new_img[index, :] = np.zeros(28)
            else:
                new_img[:, index] = np.zeros(28)
            expanded_training_pairs.append((np.reshape(new_img, 784), y))
    random.shuffle(expanded_training_pairs)
    expanded_training_data = [list(d) for d in zip(*expanded_training_pairs)]
    print("Saving expanded data. This may take a few minutes.")
    f = gzip.open("../data/mnist_expanded.pkl.gz", "w")
    pickle.dump((expanded_training_data, validation_data, test_data), f)
    f.close()

expanded_training_data , _, _ = network3.load_data_shared("./data/mnist_expanded.pkl.gz")

net = Network([ConvPoolLayer(image_shape=(mini_batch_size , 1, 28, 28),
                             filter_shape=(20, 1, 5, 5),
                             poolsize=(2, 2),
                             activation_fn=ReLU),
               ConvPoolLayer(image_shape=(mini_batch_size , 20, 12, 12),
                             filter_shape=(40, 20, 5, 5),
                             poolsize=(2, 2),
                             activation_fn=ReLU),
               FullyConnectedLayer(n_in=40*4*4, n_out=100, activation_fn=ReLU),
               SoftmaxLayer(n_in=100, n_out=10)], mini_batch_size)

net.SGD(expanded_training_data, 60, mini_batch_size, 0.03, validation_data,test_data, lmbda=0.1)

Training mini-batch number 0
Epoch 0: validation accuracy 98.93%
The corresponding test accuracy is 99.18%
Epoch 1: validation accuracy 99.11%
The corresponding test accuracy is 99.32%
Epoch 2: validation accuracy 99.08%
Epoch 3: validation accuracy 99.08%
Training mini-batch number 100000
Epoch 4: validation accuracy 99.10%
Epoch 5: validation accuracy 99.13%
The corresponding test accuracy is 99.20%
Epoch 6: validation accuracy 98.97%
Epoch 7: validation accuracy 99.12%
Training mini-batch number 200000
Epoch 8: validation accuracy 99.21%
The corresponding test accuracy is 99.28%
Epoch 9: validation accuracy 99.11%
Epoch 10: validation accuracy 99.07%
Epoch 11: validation accuracy 99.24%
The corresponding test accuracy is 99.31%
Training mini-batch number 300000
Epoch 12: validation accuracy 99.19%
Epoch 13: validation accuracy 99.28%
The corresponding test accuracy is 99.31%
Epoch 14: validation accuracy 99.30%
The corresponding test accuracy is 99.23%
Epoch 15: validation accuracy 99.26%
Training mini-batch number 400000
Epoch 16: validation accuracy 99.27%
Epoch 17: validation accuracy 99.25%
Epoch 18: validation accuracy 99.31%
The corresponding test accuracy is 99.37%
Epoch 19: validation accuracy 99.26%
Training mini-batch number 500000
Epoch 20: validation accuracy 99.35%
The corresponding test accuracy is 99.36%
Epoch 21: validation accuracy 99.30%
Epoch 22: validation accuracy 99.32%
Epoch 23: validation accuracy 99.34%
Training mini-batch number 600000
Epoch 24: validation accuracy 99.30%
Epoch 25: validation accuracy 99.25%
Epoch 26: validation accuracy 99.26%
Epoch 27: validation accuracy 99.30%
Training mini-batch number 700000
Epoch 28: validation accuracy 99.29%
Epoch 29: validation accuracy 99.39%
The corresponding test accuracy is 99.43%
Epoch 30: validation accuracy 99.29%
Epoch 31: validation accuracy 99.42%
The corresponding test accuracy is 99.42%
Training mini-batch number 800000
Epoch 32: validation accuracy 99.46%
The corresponding test accuracy is 99.44%
Epoch 33: validation accuracy 99.42%
Epoch 34: validation accuracy 99.43%
Epoch 35: validation accuracy 99.42%
Training mini-batch number 900000
Epoch 36: validation accuracy 99.42%
Epoch 37: validation accuracy 99.42%
Epoch 38: validation accuracy 99.42%
Epoch 39: validation accuracy 99.43%
Training mini-batch number 1000000
Epoch 40: validation accuracy 99.44%
Epoch 41: validation accuracy 99.44%
Epoch 42: validation accuracy 99.44%
Epoch 43: validation accuracy 99.45%
Training mini-batch number 1100000
Epoch 44: validation accuracy 99.45%
Epoch 45: validation accuracy 99.45%
Epoch 46: validation accuracy 99.45%
Epoch 47: validation accuracy 99.44%
Training mini-batch number 1200000
Epoch 48: validation accuracy 99.44%
Epoch 49: validation accuracy 99.44%
Epoch 50: validation accuracy 99.44%
Epoch 51: validation accuracy 99.44%
Training mini-batch number 1300000
Epoch 52: validation accuracy 99.44%
Epoch 53: validation accuracy 99.44%
Epoch 54: validation accuracy 99.44%
Epoch 55: validation accuracy 99.45%
Training mini-batch number 1400000
Epoch 56: validation accuracy 99.45%
Epoch 57: validation accuracy 99.45%
Epoch 58: validation accuracy 99.46%
The corresponding test accuracy is 99.42%
Epoch 59: validation accuracy 99.46%
The corresponding test accuracy is 99.42%
Finished training network.
Best validation accuracy of 99.46% obtained at iteration 1499999
Corresponding test accuracy of 99.42%

net = Network([ConvPoolLayer(image_shape=(mini_batch_size , 1, 28, 28),
                             filter_shape=(20, 1, 5, 5),
                             poolsize=(2, 2),
                             activation_fn=ReLU),
               ConvPoolLayer(image_shape=(mini_batch_size , 20, 12, 12),
                             filter_shape=(40, 20, 5, 5),
                             poolsize=(2, 2),
                             activation_fn=ReLU),
               FullyConnectedLayer(n_in=40*4*4, n_out=100, activation_fn=ReLU),
               FullyConnectedLayer(n_in=100, n_out=100, activation_fn=ReLU),
               SoftmaxLayer(n_in=100, n_out=10)], mini_batch_size)

net.SGD(expanded_training_data , 60, mini_batch_size , 0.03, validation_data ,test_data , lmbda=0.1)

Training mini-batch number 0
Epoch 0: validation accuracy 98.63%
The corresponding test accuracy is 98.64%
Epoch 1: validation accuracy 99.06%
The corresponding test accuracy is 99.11%
Epoch 2: validation accuracy 99.07%
The corresponding test accuracy is 99.12%
Epoch 3: validation accuracy 98.90%
Training mini-batch number 100000
Epoch 4: validation accuracy 99.00%
Epoch 5: validation accuracy 98.91%
Epoch 6: validation accuracy 99.05%
Epoch 7: validation accuracy 98.88%
Training mini-batch number 200000
Epoch 8: validation accuracy 98.89%
Epoch 9: validation accuracy 98.88%
Epoch 10: validation accuracy 98.97%
Epoch 11: validation accuracy 99.01%
Training mini-batch number 300000
Epoch 12: validation accuracy 99.19%
The corresponding test accuracy is 99.20%
Epoch 13: validation accuracy 99.09%
Epoch 14: validation accuracy 99.25%
The corresponding test accuracy is 99.21%
Epoch 15: validation accuracy 99.00%
Training mini-batch number 400000
Epoch 16: validation accuracy 99.22%
Epoch 17: validation accuracy 99.29%
The corresponding test accuracy is 99.29%
Epoch 18: validation accuracy 99.23%
Epoch 19: validation accuracy 99.16%
Training mini-batch number 500000
Epoch 20: validation accuracy 99.06%
Epoch 21: validation accuracy 99.05%
Epoch 22: validation accuracy 99.26%
Epoch 23: validation accuracy 99.19%
Training mini-batch number 600000
Epoch 24: validation accuracy 99.23%
Epoch 25: validation accuracy 99.10%
Epoch 26: validation accuracy 99.27%
Epoch 27: validation accuracy 99.21%
Training mini-batch number 700000
Epoch 28: validation accuracy 99.15%
Epoch 29: validation accuracy 99.23%
Epoch 30: validation accuracy 99.32%
The corresponding test accuracy is 99.29%
Epoch 31: validation accuracy 99.34%
The corresponding test accuracy is 99.37%
Training mini-batch number 800000
Epoch 32: validation accuracy 99.31%
Epoch 33: validation accuracy 99.30%
Epoch 34: validation accuracy 99.33%
Epoch 35: validation accuracy 99.36%
The corresponding test accuracy is 99.22%
Training mini-batch number 900000
Epoch 36: validation accuracy 99.26%
Epoch 37: validation accuracy 99.20%
Epoch 38: validation accuracy 99.29%
Epoch 39: validation accuracy 99.27%
Training mini-batch number 1000000
Epoch 40: validation accuracy 99.19%
Epoch 41: validation accuracy 99.37%
The corresponding test accuracy is 99.37%
Epoch 42: validation accuracy 99.21%
Epoch 43: validation accuracy 99.20%
Training mini-batch number 1100000
Epoch 44: validation accuracy 99.24%
Epoch 45: validation accuracy 99.16%
Epoch 46: validation accuracy 99.14%
Epoch 47: validation accuracy 99.37%
Training mini-batch number 1200000
Epoch 48: validation accuracy 99.32%
Epoch 49: validation accuracy 99.22%
Epoch 50: validation accuracy 99.28%
Epoch 51: validation accuracy 99.26%
Training mini-batch number 1300000
Epoch 52: validation accuracy 99.26%
Epoch 53: validation accuracy 99.22%
Epoch 54: validation accuracy 99.32%
Epoch 55: validation accuracy 99.26%
Training mini-batch number 1400000
Epoch 56: validation accuracy 99.09%
Epoch 57: validation accuracy 99.27%
Epoch 58: validation accuracy 99.24%
Epoch 59: validation accuracy 99.27%
Finished training network.
Best validation accuracy of 99.37% obtained at iteration 1049999
Corresponding test accuracy of 99.37%

net = Network([ConvPoolLayer(image_shape=(mini_batch_size , 1, 28, 28),
                             filter_shape=(20, 1, 5, 5),
                             poolsize=(2, 2),
                             activation_fn=ReLU),
               ConvPoolLayer(image_shape=(mini_batch_size , 20, 12, 12),
                             filter_shape=(40, 20, 5, 5),
                             poolsize=(2, 2),
                             activation_fn=ReLU),
               FullyConnectedLayer(n_in=40*4*4, n_out=1000, activation_fn=ReLU , p_dropout=0.5),
               FullyConnectedLayer(n_in=1000, n_out=1000, activation_fn=ReLU , p_dropout=0.5),
               SoftmaxLayer(n_in=1000, n_out=10, p_dropout=0.5)],mini_batch_size)

net.SGD(expanded_training_data, 40, mini_batch_size, 0.03, validation_data , test_data)

Training mini-batch number 0
Epoch 0: validation accuracy 98.52%
The corresponding test accuracy is 98.62%
Epoch 1: validation accuracy 99.05%
The corresponding test accuracy is 99.11%
Epoch 2: validation accuracy 99.24%
The corresponding test accuracy is 99.34%
Epoch 3: validation accuracy 99.27%
The corresponding test accuracy is 99.39%
Training mini-batch number 100000
Epoch 4: validation accuracy 99.35%
The corresponding test accuracy is 99.49%
Epoch 5: validation accuracy 99.32%
Epoch 6: validation accuracy 99.39%
The corresponding test accuracy is 99.50%
Epoch 7: validation accuracy 99.46%
The corresponding test accuracy is 99.56%
Training mini-batch number 200000
Epoch 8: validation accuracy 99.42%
Epoch 9: validation accuracy 99.44%
Epoch 10: validation accuracy 99.43%
Epoch 11: validation accuracy 99.49%
The corresponding test accuracy is 99.55%
Training mini-batch number 300000
Epoch 12: validation accuracy 99.43%
Epoch 13: validation accuracy 99.50%
The corresponding test accuracy is 99.54%
Epoch 14: validation accuracy 99.51%
The corresponding test accuracy is 99.58%
Epoch 15: validation accuracy 99.49%
Training mini-batch number 400000
Epoch 16: validation accuracy 99.55%
The corresponding test accuracy is 99.57%
Epoch 17: validation accuracy 99.55%
The corresponding test accuracy is 99.57%
Epoch 18: validation accuracy 99.56%
The corresponding test accuracy is 99.62%
Epoch 19: validation accuracy 99.54%
Training mini-batch number 500000
Epoch 20: validation accuracy 99.60%
The corresponding test accuracy is 99.64%
Epoch 21: validation accuracy 99.62%
The corresponding test accuracy is 99.60%
Epoch 22: validation accuracy 99.55%
Epoch 23: validation accuracy 99.62%
The corresponding test accuracy is 99.59%
Training mini-batch number 600000
Epoch 24: validation accuracy 99.46%
Epoch 25: validation accuracy 99.51%
Epoch 26: validation accuracy 99.48%
Epoch 27: validation accuracy 99.49%
Training mini-batch number 700000
Epoch 28: validation accuracy 99.50%
Epoch 29: validation accuracy 99.57%
Epoch 30: validation accuracy 99.56%
Epoch 31: validation accuracy 99.61%
Training mini-batch number 800000
Epoch 32: validation accuracy 99.54%
Epoch 33: validation accuracy 99.61%
Epoch 34: validation accuracy 99.53%
Epoch 35: validation accuracy 99.52%
Training mini-batch number 900000
Epoch 36: validation accuracy 99.58%
Epoch 37: validation accuracy 99.63%
The corresponding test accuracy is 99.66%
Epoch 38: validation accuracy 99.62%
Epoch 39: validation accuracy 99.66%
The corresponding test accuracy is 99.60%
Finished training network.
Best validation accuracy of 99.66% obtained at iteration 999999
Corresponding test accuracy of 99.60%

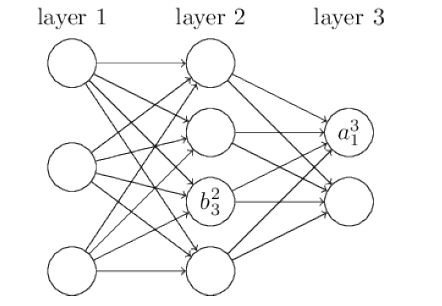

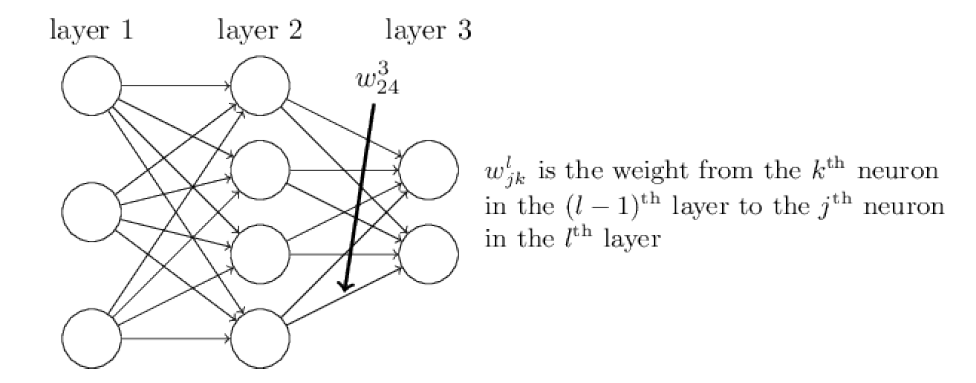

Example: Sigmoid network with cross-entropy loss using gradient descent

A common network architecture is one with fully connected layers where each layer’s nonlinearity is the sigmoid function \(a^m = \frac{1}{1 + e^{z^m}}\) and the cost function is the cross-entropy loss \((y - 1)\log(1 - a^L) - y\log(a^L)\). To compute the updates for gradient descent, we first compute (based on the tables above) \[\begin{align*} \frac{\partial C}{\partial z^L} &= \frac{\partial C}{\partial a^L} \frac{\partial a^L}{\partial z^L}\\ &= \left(\frac{a^L - y}{a^L(1 - a^L)}\right)a^L(1 - a^L)\\ &= a^L - y \end{align*}\] From here, we can compute \[\begin{align*} \frac{\partial C}{\partial z^{L - 1}} &= \left(W^{L\top} \frac{\partial C}{\partial z^L} \right) \circ \frac{\partial a^{L - 1}}{\partial z^{L - 1}}\\ &= W^{L\top} (a^L - y) \circ a^{L - 1}(1 - a^{L - 1})\\ \frac{\partial C}{\partial z^{L - 2}} &= \left(W^{L - 1\top} \frac{\partial C}{\partial z^{L - 1}} \right) \circ \frac{\partial a^{L - 2}}{\partial z^{L - 2}}\\ &= W^{L - 1\top} \left(W^{L\top} (a^L - y) \circ a^{L - 1}(1 - a^{L - 1})\right) \circ a^{L - 2}(1 - a^{L - 2}) \end{align*}\] and so on, until we have computed \(\frac{\partial C}{\partial z^m}\) for \(m \in \{1, \ldots, L\}\). This allows us to compute \(\frac{\partial C}{\partial W^m_{ij}}\) and \(\frac{\partial C}{\partial b^m_i}\), e.g. \[\begin{align*} \frac{\partial C}{\partial W^L} &= \frac{\partial C}{\partial z^L} a^{L - 1 \top}\\ &= (a^L - y)a^{L - 1\top}\\ \frac{\partial C}{\partial W^{L - 1}} &= \frac{\partial C}{\partial z^{L - 1}} a^{L - 2 \top}\\ &= W^{L\top} (a^L - y) \circ a^{L - 1}(1 - a^{L - 1}) a^{L - 2\top} \end{align*}\] and so on. Standard gradient descent then updates each parameter as follows: \[W^m = W^m - \lambda \frac{\partial C}{\partial W^m}\] \[b^m = b^m - \lambda \frac{\partial C}{\partial b^m}\] where \(\lambda\) is the learning rate. This process is repeated until some stopping criteria is met.
